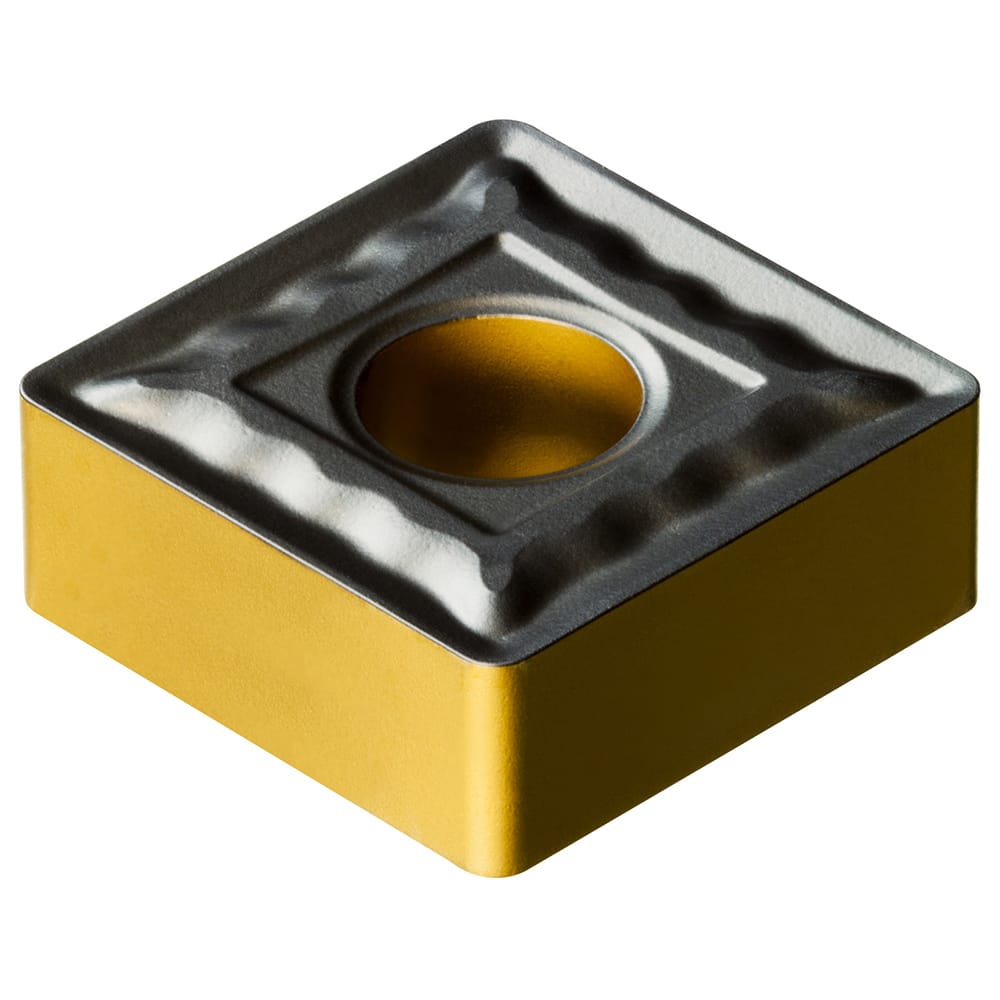

Turning Insert: SNMG 15 06 12-QM 4415, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0469″ Corner Radius, N/A Square, Series SNMG-QM
Item #: 10797785
Brand: Sandvik Coromant
Model #: 8021231
Product Specifications
| Insert Style | SNMG |
| Insert Shape Code | S |
| Insert Size Code | 1506 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Series | SNMG-QM |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | SNMG 15 06 12-QM 4415 |
| Manufacturers Catalog Number | SNMG 15 06 12-QM 4415 |
| Cutting Direction | Neutral |
| Chip Breaker | PR |
| Style | SNMG |
| Coating/Finish | TiCN; TiN; Al2O3 |
