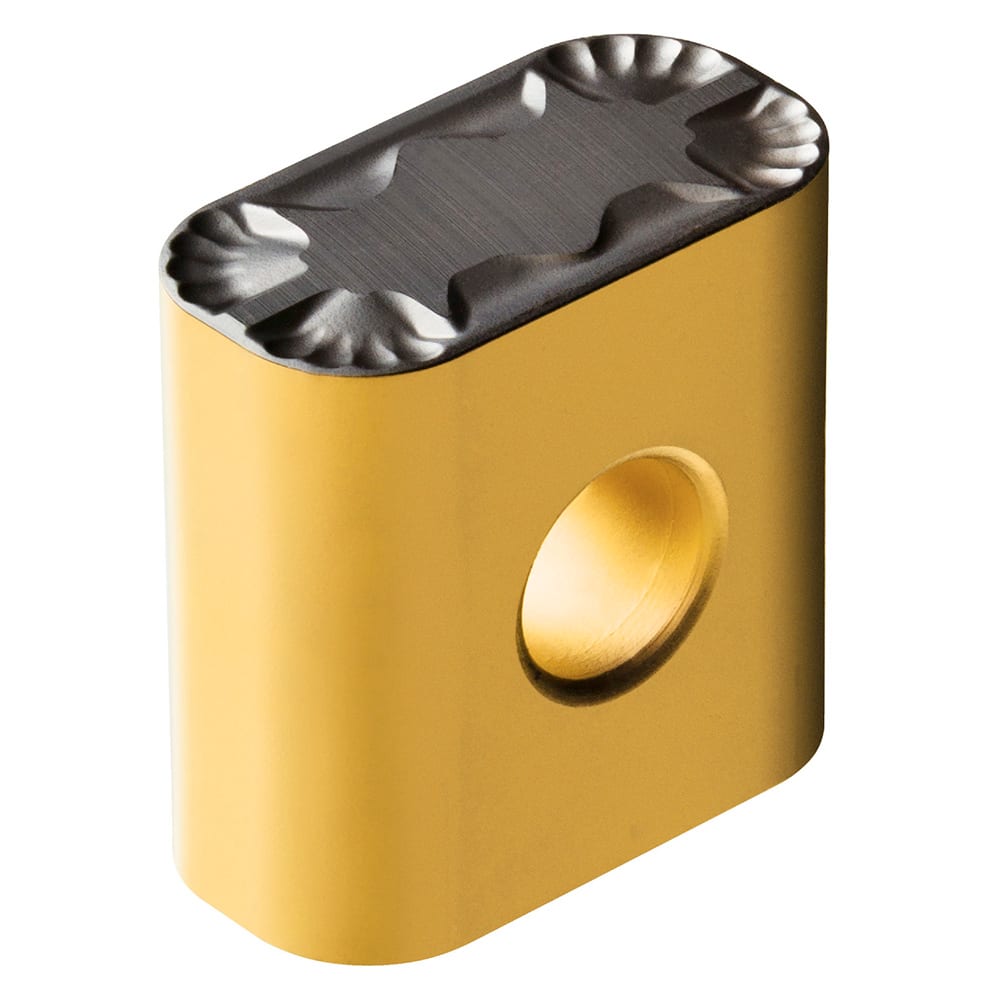

Turning Insert: LNUX 19 19 40-PF 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.1575″ Corner Radius, N/A Series LNUX-PF
Item #: 10796001
Brand: Sandvik Coromant
Model #: 8019675
Product Specifications
| Insert Style | LNUX |
| Insert Shape Code | L |
| Insert Size Code | 1919 |
| Clearance Code | N |
| Tolerance Code | U |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.7500 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Relief Angle | 0 |
| Series | LNUX-PF |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Iso Code | LNUX 19 19 40-PF 4425 |
| Manufacturers Catalog Number | LNUX 19 19 40-PF 4425 |
| Cutting Direction | Neutral |
| Chip Breaker | PF |
| Width (Decimal Inch - 4 Decimals) | 0.3937 |
| Coating/Finish | TiCN; TiN; Al2O3 |
