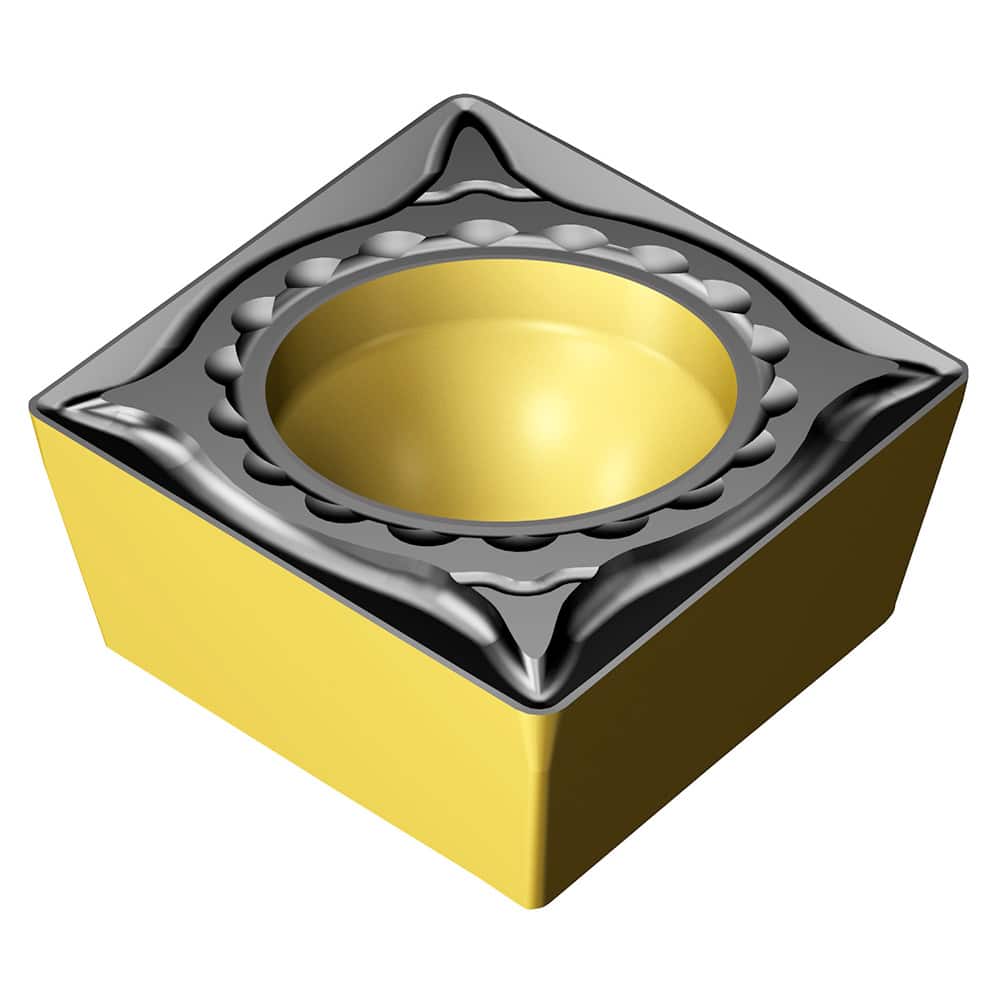

Turning Insert: CPMT 09 T3 08-PM 4415, TiCN, Al2O3 & TiN Finish, Neutral, 0.0313″ Corner Radius, N/A Series CPMT-PM
Item #: 10794881
Brand: Sandvik Coromant
Model #: 8020991
Product Specifications
| Insert Style | CPMT |
| Insert Shape Code | C |
| Insert Size Code | 32.52 |
| Clearance Code | P |
| Tolerance Code | M |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 11 |
| Series | CPMT-PM |
| Coating Process | CVD |
| Secondary Workpiece Material | K |
| Iso Code | CPMT 09 T3 08-PM 4415 |
| Manufacturers Catalog Number | CPMT 09 T3 08-PM 4415 |
| Cutting Direction | Neutral |
| Chip Breaker | PR |
| Coating/Finish | TiCN; TiN; Al2O3 |
