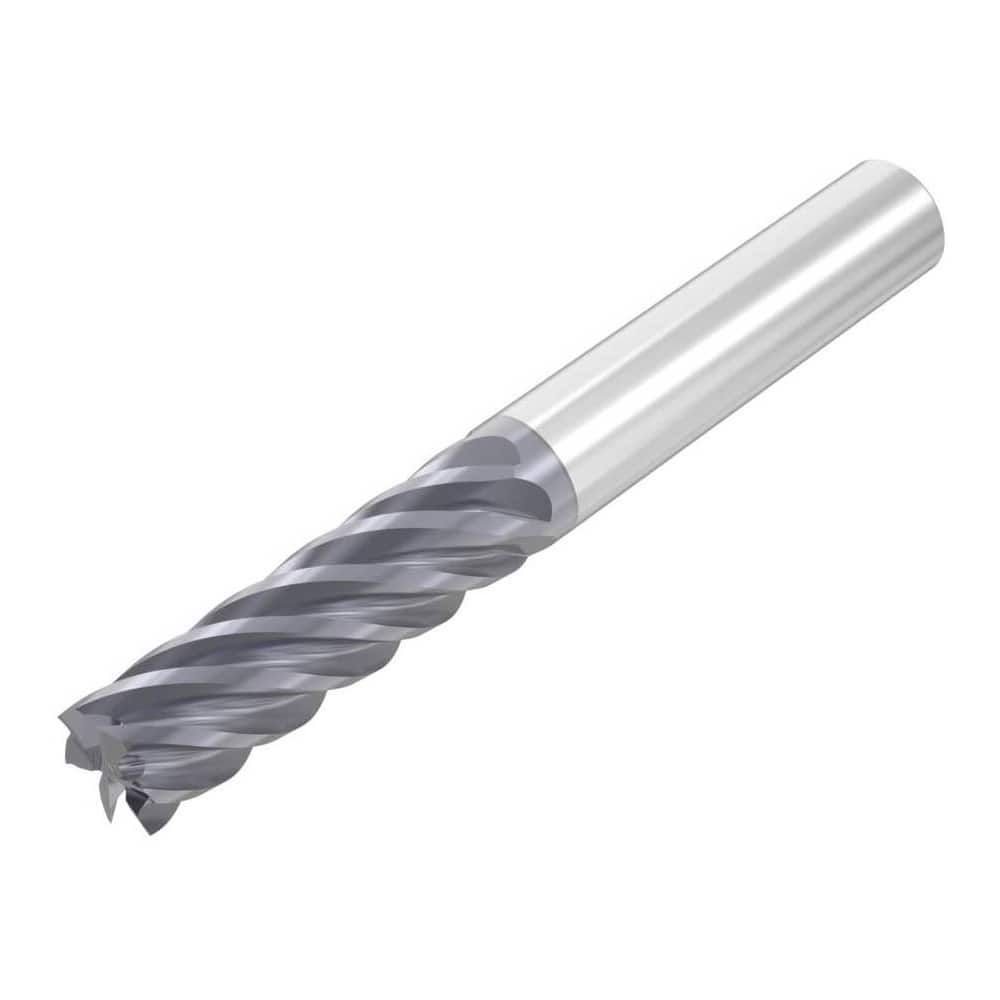

Roughing & Finishing End Mills; Mill Diameter (Decimal Inch): 0.5000; Mill Diameter (Inch): 1/2; End Type: Square End; Number of Flutes: 6; Material: Solid Carbide; Finish/Coating: AlTiN; Length of Cut (Inch): 1; Shank Diameter (Inch): 1/2; Overall Length
Item #: 10750198
Brand: Niagara Cutter
Model #: 10072645
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| End Type | Square End |
| Number of Flutes | 6 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 1 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 3 |
| Centercutting | Center Cutting |
| Extended Reach | No |
| Chipbreaker | No |
| Shank Type | Straight |
| Helix Angle | 38 |
| Single or Double End | Single |
| Length Type | Standard |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.0000/+0.0020 |
| Series/List | S638 |
| Material Application | Stainless Steel; Titanium; High Temperature Alloy |
