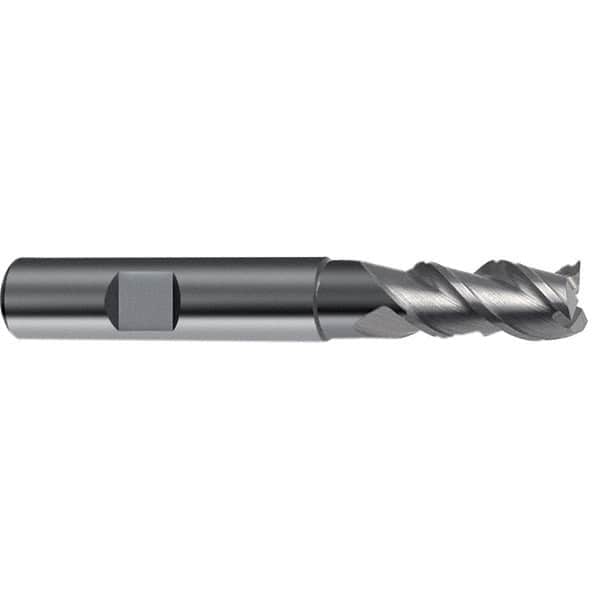

Guhring - Roughing & Finishing End Mills Mill Diameter (Inch): 3/4 Mill Diameter (Decimal Inch): 0.7500
Item #: 10664225
Brand: Guhring
Model #: 9067750190500
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are used at reduced speeds for general applications on nonferrous metals.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Product Specifications
Roughing & Finishing End Mills; Mill Diameter (Inch): 3/4 ; Mill Diameter (Decimal Inch): 0.7500 ; End Type: Square ; Number of Flutes: 3 ; Finish/Coating: Uncoated ; Length of Cut (Inch): 1-1/2
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| End Type | Square |
| Number of Flutes | 3 |
| Finish/Coating | Uncoated |
| Length of Cut (Inch) | 1-1/2 |
| Length of Cut (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 4 |
| Centercutting | Center Cutting |
| Extended Reach | NonExtendedReach |
| Shank Type | Weldon |
| Helix Angle | 39/40/41 |
| Material Grade | Solid Carbide |
| Single or Double End | Single |
| Length Type | Regular |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series/List | 6775 |
