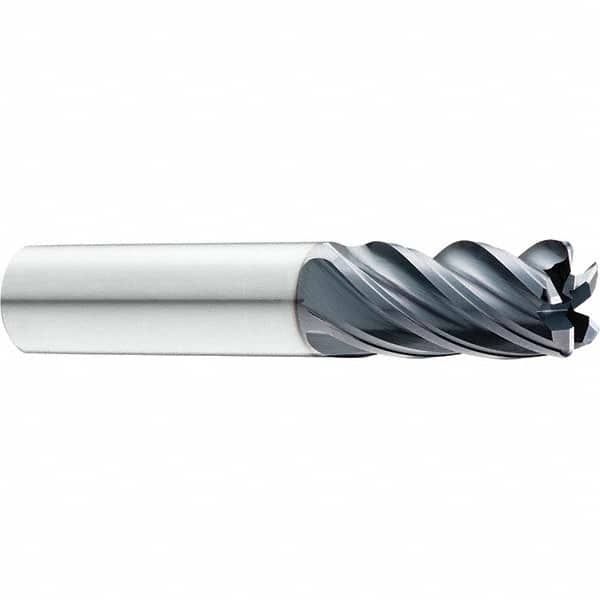

Corner Radius End Mill: 1″ Dia, 1-1/8″ LOC, 0.03″ Radius, 5 Flutes, Solid Carbide 4″ OAL, 1″ Shank Dia, 37 ° Helix, TM Proprietary Coated, Series Z5C
Item #: 10634087
Brand: SGS
Model #: 38563
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (mm) | 1.0 in |
| Mill Diameter (Decimal Inch) | 1.0000; 1.0 in |
| Number of Flutes | 5 |
| Pitch | Variable |
| Length of Cut (Decimal Inch) | 1.1250 |
| Shank Diameter (Inch) | 1.0 in |
| Shank Diameter (mm) | 1.0 in |
| Shank Diameter (Decimal Inch) | 1.0 in |
| Material | Solid Carbide |
| Finish/Coating | TM Proprietary |
| Overall Length (mm) | 4.0 in; 4 in |
| Overall Length (Inch) | 4; 4.0 in; 4 in |
| Centercutting | No |
| Helix Angle | 37.00 |
| Extended Reach | No |
| Coolant Induced | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Helical |
| Helix Style | Medium |
| Mill Diameter Tolerance (Decimal Inch) | +0.000000 to -0.001600 in |
| Mill Diameter Tolerance (mm) | +0.000000 to -0.001600 in |
| Shank Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| PSC Code | 3455 |
| Overall Length (Decimal Inch) | 4.0000; 4.0 in; 4 in |
| Series/List | Z5C |
| Chipbreaker | No |
