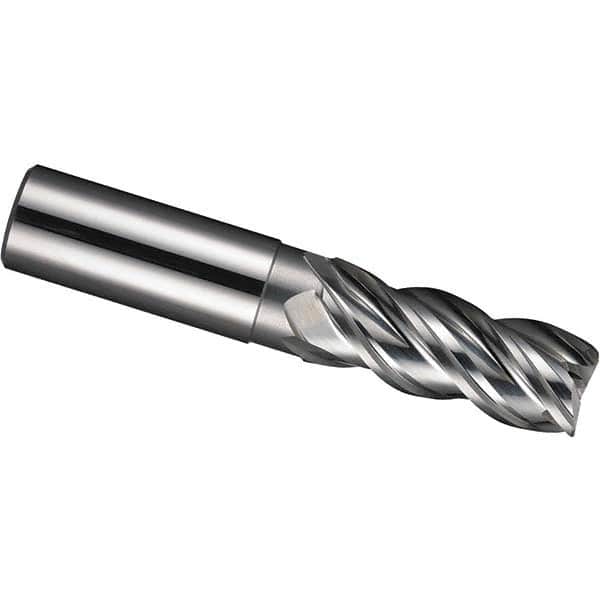

Square End Mill: 0.2362'' Dia, 0.945'' LOC, 0.236'' Shank Dia, 2.284'' OAL, 4 Flutes, Solid Carbide Single End, TiB2 Finish, Helical Flute, Centercutting, RH Cut, RH Flute, Series 43MAPF
Item #: 10601037
Brand: SGS
Model #: 44627
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2362 |
| Mill Diameter (mm) | 6.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | TiB2 |
| Shank Diameter (mm) | 6.00 |
| Helix Angle | 41 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Overall Length (mm) | 54.00 |
| Length Of Cut Range (Decimal Inch) | 0.8000 - 1.0000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.9450 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (Decimal Inch) | 2.2840 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Shank Diameter Tolerance | h6 |
| Length Type | Regular |
| Mill Diameter Tolerance | +0.010 - -0.050 mm |
| Overall Length Tolerance | +0.062/-0.062 in |
| Through Coolant | Yes |
| Series | 43MAPF |
| PSC Code | 3455 |
