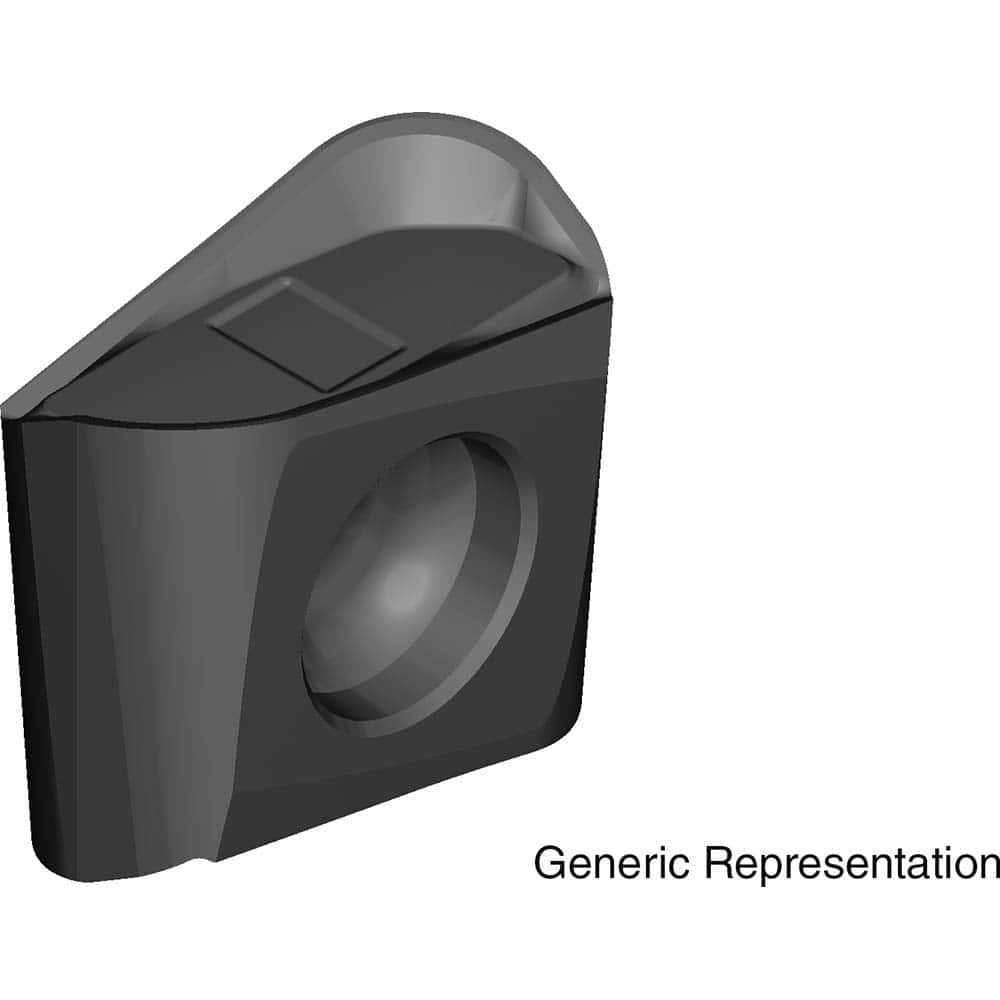

LNEX130632PNERL ACM200 Carbide Milling Insert Al2O3/TiCN Finish, 10.8mm Thick x 13mm Wide
Item #: 10549129
Brand: Sumitomo
Model #: 1P4V029
Product Specifications
| Insert Style | LNEX |
| Insert Size | 130632 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | ACM200 |
| Corner Radius (mm) | 3.20 |
| Coating Process | CVD |
| Maximum Depth of Cut (mm) | 12.00 |
| Manufacturers Catalog Number | LNEX130632PNERL ACM200 |
| Cutter Series Compatibility | TSX |
| Chip Breaker | L |
| Cutting Direction | Right Hand |
| Shape | Tangential |
| Thickness (mm) | 10.80 |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiCN; Al2O3 |
| Width (Mm - 2 Decimals) | 13.00 |
