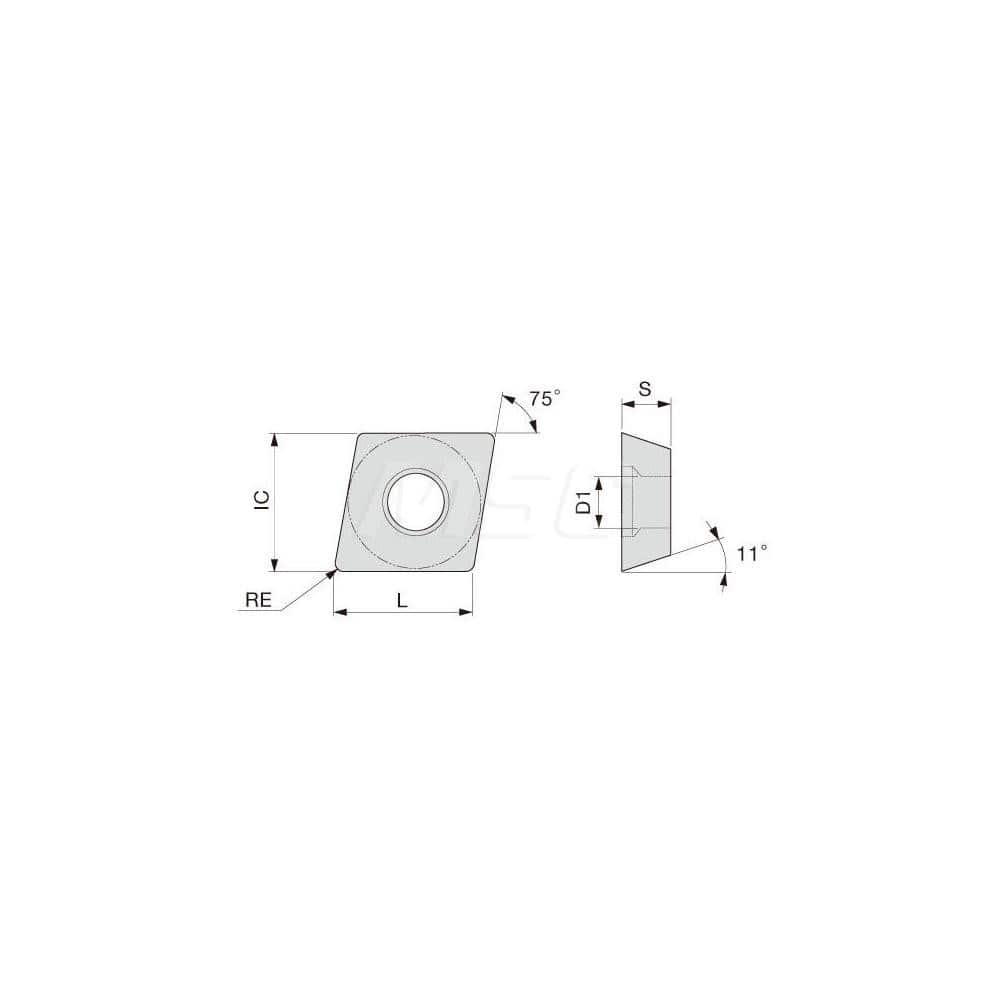

Turning Insert: EPGT520JS SH730, Solid Carbide TiAlN Finish, Neutral, 0.0040″ Corner Radius, 75.0 ° N/A Diamond, Series EPGT
Item #: 10386746
Brand: Tungaloy
Model #: 6837461
Product Specifications
| Insert Style | EPGT |
| Insert Size Code | 520 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | SH730 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0630 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Included Angle | 75.0 |
| Relief Angle | 11 |
| Series | EPGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | EPGT520JSSH730 |
| Iso Code | EPGT520-JS SH730 |
| Chip Breaker | JS |
| Coating/Finish | TiAlN |
