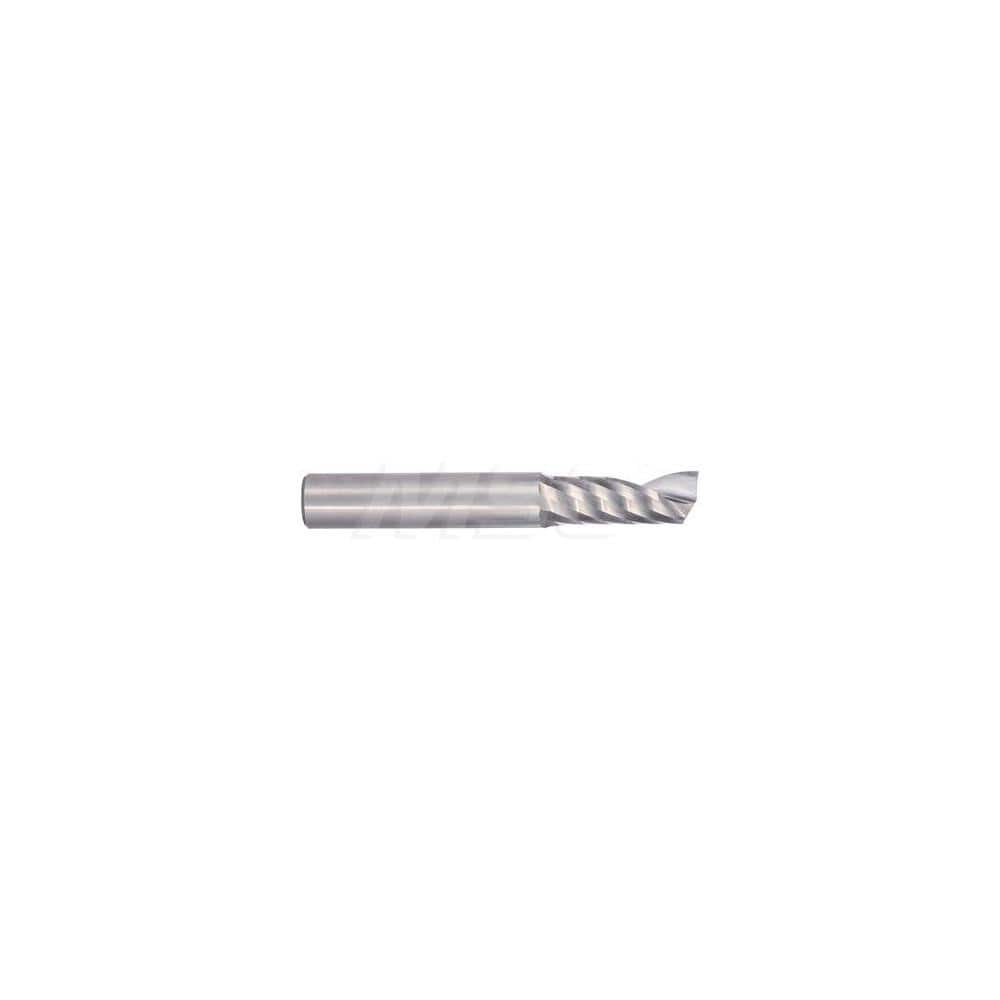

Square End Mill: 22mm LOC, 8mm Shank Dia, 63mm OAL, 1 Flute, Solid Carbide Single End, Uncoated, Spiral Flute, 30 ° Helix, Centercutting, RH Cut, RH Flute, Series 6793
Item #: 10366326
Brand: Guhring
Model #: 9067930080000
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3150 |
| Mill Diameter (mm) | 8.00 |
| Number Of Flutes | 1 |
| Length of Cut (mm) | 22.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright/Uncoated |
| Shank Diameter (mm) | 8.00 |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Overall Length (mm) | 63.00 |
| Shank Type | Straight-Cylindrical |
| Material Grade | Proprietary |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Length Type | Standard |
| Series | 6793 |
