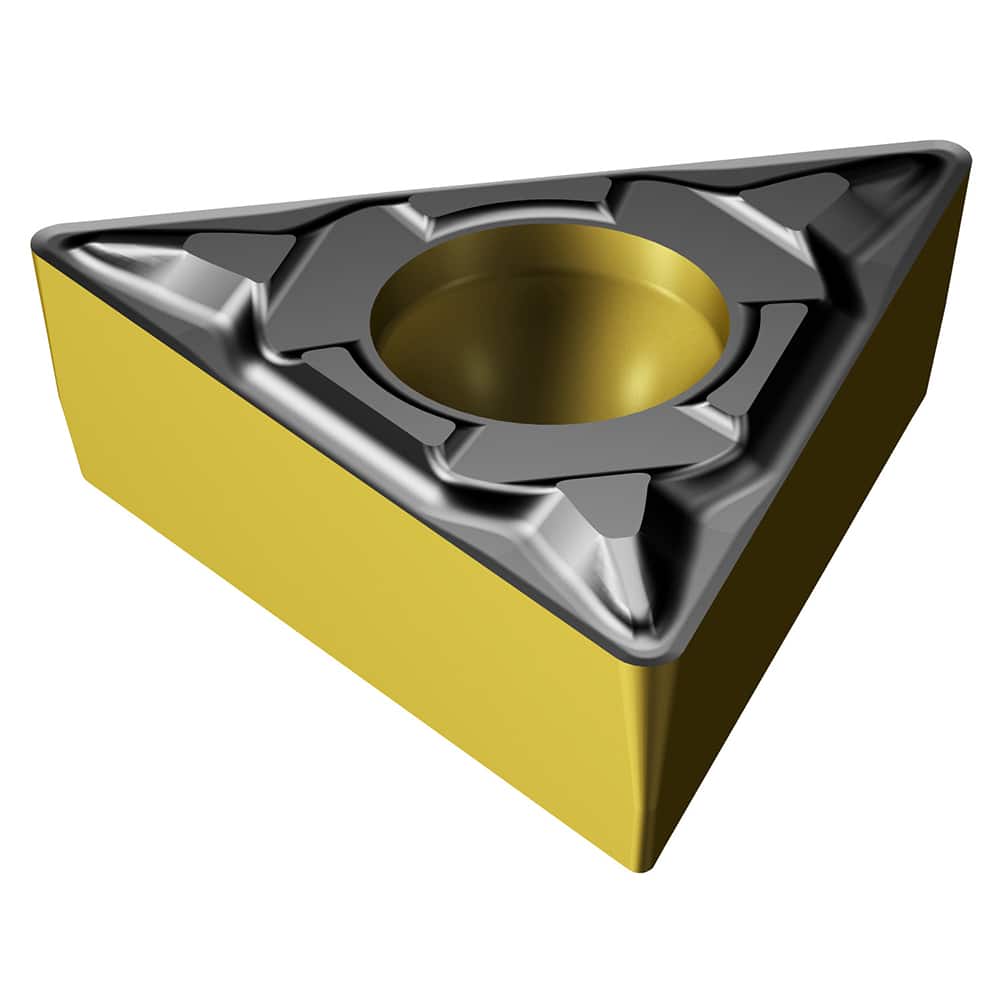

TCMT32.51-PF 4415 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 3/8″ Inscribed Circle, 0.0156″ Corner Radius, 5/32″ Thick, 60° Trigon
Item #: 10209344
Brand: Sandvik Coromant
Model #: 7860495
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 16T3 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | CoroTurn 107 |
| Coating Process | CVD |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | TCMT3251PF4415 |
| Iso Code | TCMT 16 T3 04-PF 4415 |
| Manufacturers Catalog Number | TCMT 3(2.5)1-PF |
| Cutting Direction | Neutral |
| Chip Breaker | PF |
| Industry Standard Number | TCMT 16 T3 04-PF 4415 |
| Coating/Finish | TiCN; TiN; Al2O3 |
 | |
| MSC Part # | 10209344 |
| Mfr Part # | 7860495 |
| Country of OriginCountry of Origin is subject to change | Sweden |
