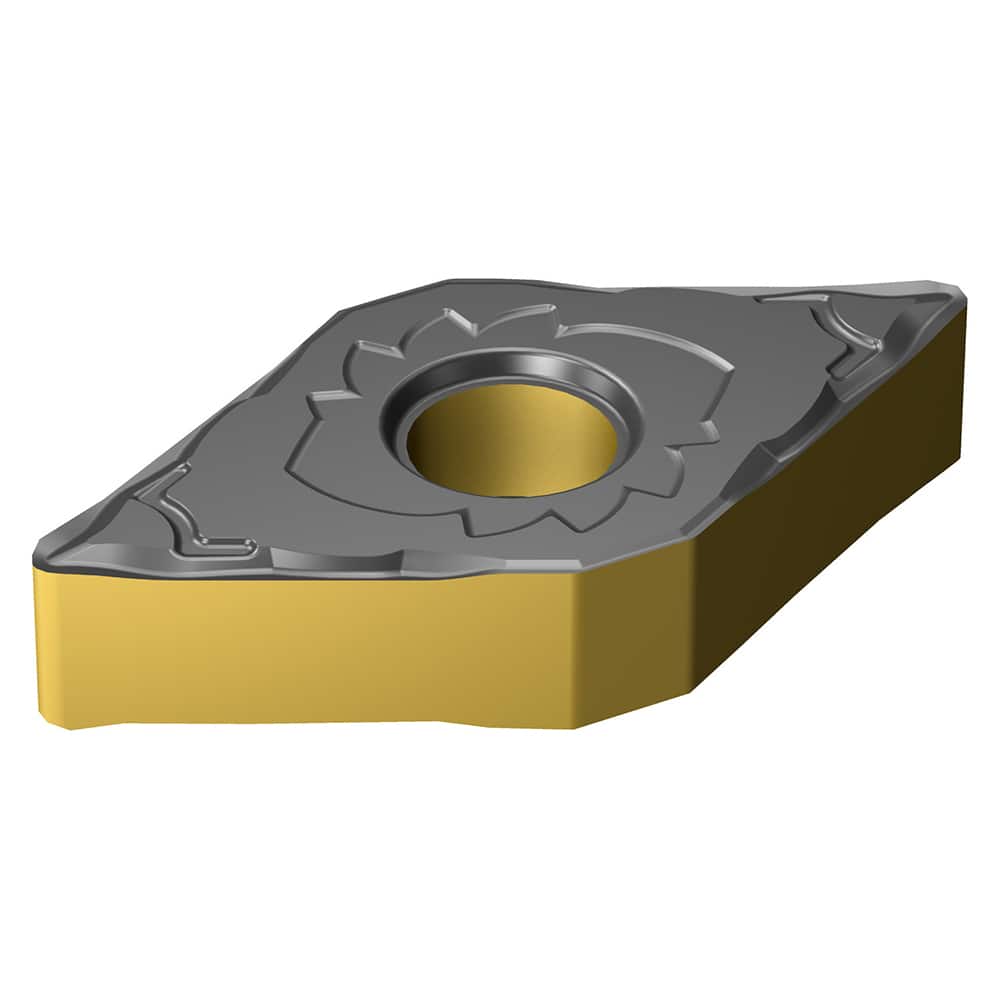

DNMG432-SF S205 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 1/2″ Inscribed Circle, 0.0313″ Corner Radius, 3/16″ Thick, 55° Triangle
Item #: 10209104
Brand: Sandvik Coromant
Model #: 8003585
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 1504 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | S205 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | DNMG432SFS205 |
| Iso Code | DNMG 15 04 08-SF S205 |
| Manufacturers Catalog Number | DNMG432-SF |
| Cutting Direction | Neutral |
| Chip Breaker | SF |
| Industry Standard Number | DNMG 15 04 08-SF S205 |
| Coating/Finish | TiCN; TiN; Al2O3 |
 | |
| MSC Part # | 10209104 |
| Mfr Part # | 8003585 |
| Country of OriginCountry of Origin is subject to change | Sweden |
