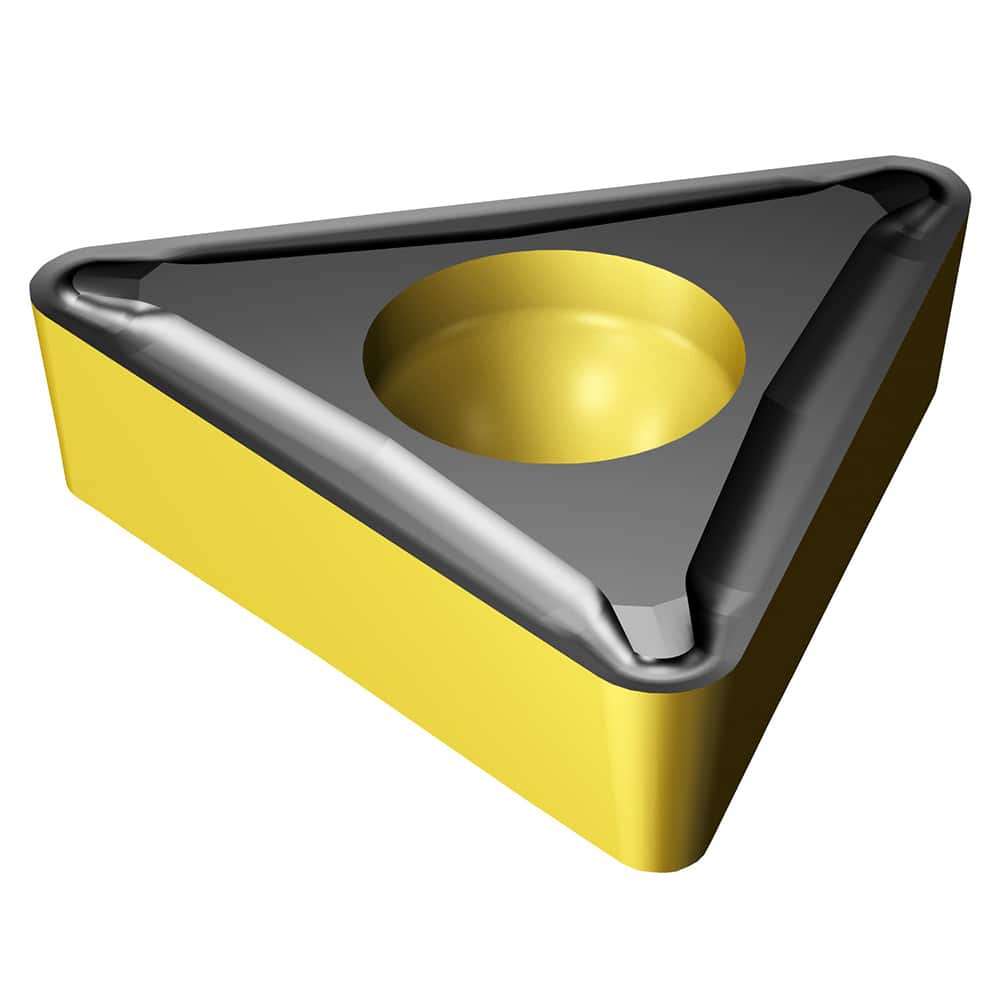

TCMT1.21.21-UF 4415 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 5/32″ Inscribed Circle, 0.0156″ Corner Radius, 0.078″ Thick, 60° Triangle
Item #: 10208866
Brand: Sandvik Coromant
Model #: 7860476
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 06T1 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (mm) | 3.97 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 1.98 |
| Insert Thickness (Decimal Inch) | 0.0780 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | CoroTurn 107 |
| Coating Process | CVD |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | TCMT12121UF4415 |
| Iso Code | TCMT 06 T1 04-UF 4415 |
| Manufacturers Catalog Number | TCMT 1.2(1.2)1-UF |
| Cutting Direction | Neutral |
| Chip Breaker | UF |
| Industry Standard Number | TCMT 06 T1 04-UF 4415 |
| Coating/Finish | TiCN; TiN; Al2O3 |
 | |
| MSC Part # | 10208866 |
| Mfr Part # | 7860476 |
| Country of OriginCountry of Origin is subject to change | Sweden |
