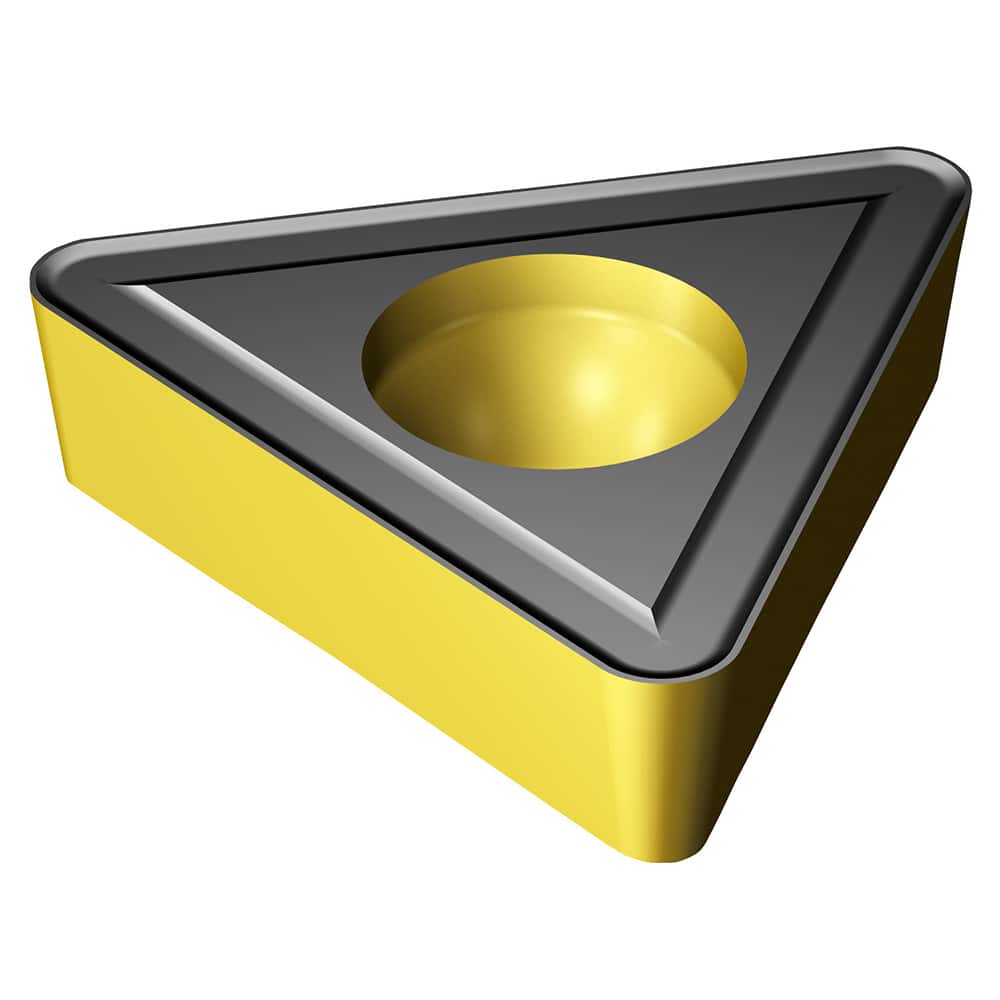

Sandvik Coromant - TCMT32.51-UR 4425 Carbide Turning Insert
Item #: 10208445
Brand: Sandvik Coromant
Model #: 7861132
Product Specifications
| Insert Style | TCMT |
| Insert Size | 16T304 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 4425 |
| Coating | Al2O3/TiN/TiCN |
| ISO Number | TCMT 16 T3 04-UR 4425 |
| Relief Angle | 7.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TCMT 3(2.5)1-UR |
| Primary Workpiece Material | P; K |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Finish/Coating | Al2O3/TiN/TiCN |
| Series/List | CoroTurn 107 |
| Shape | Trigon |
