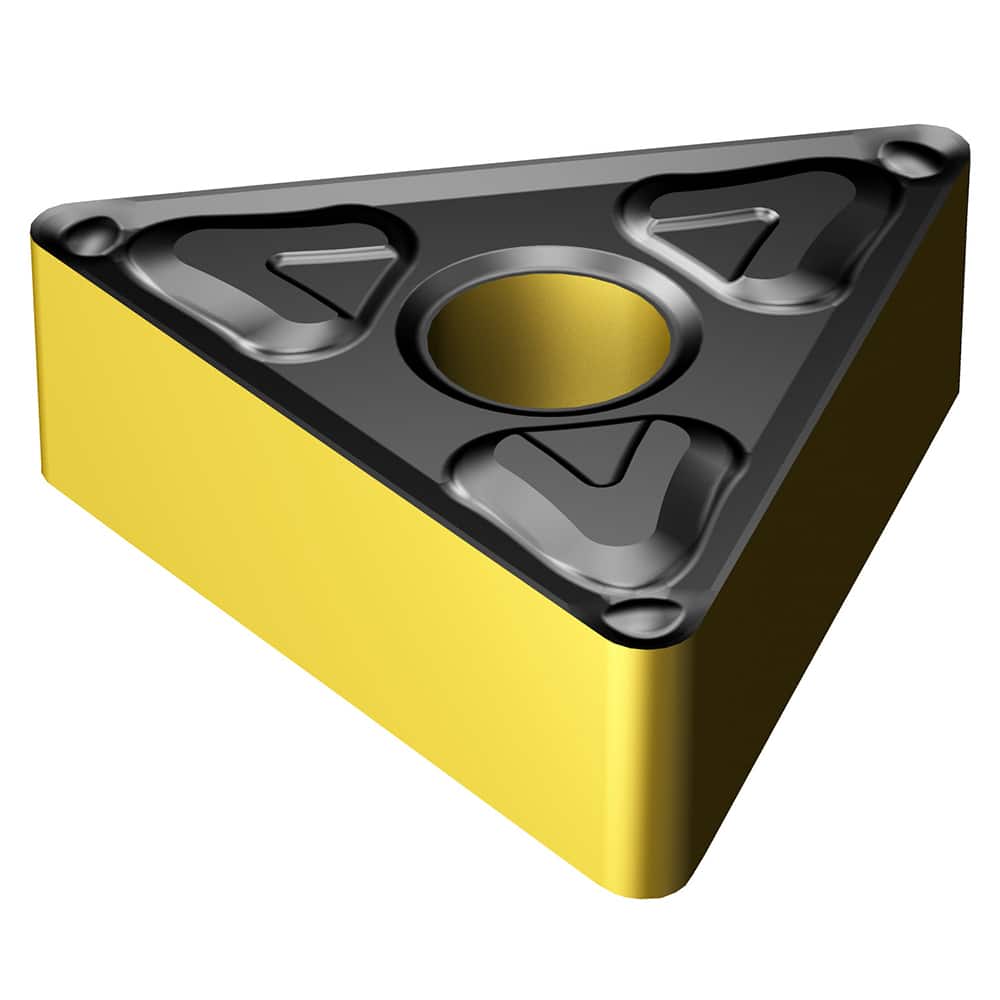

Sandvik Coromant - TNMG332-XF 4415 Carbide Turning Insert
Item #: 10208114
Brand: Sandvik Coromant
Model #: 7860610
Product Specifications
| Insert Style | TNMG |
| Insert Size | 160408 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 4415 |
| Coating | Al2O3/TiN/TiCN |
| ISO Number | TNMG 16 04 08-XF 4415 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TNMG 332-XF |
| Primary Workpiece Material | P; K |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Finish/Coating | Al2O3/TiN/TiCN |
| Series/List | T-Max P |
| Shape | Trigon |
