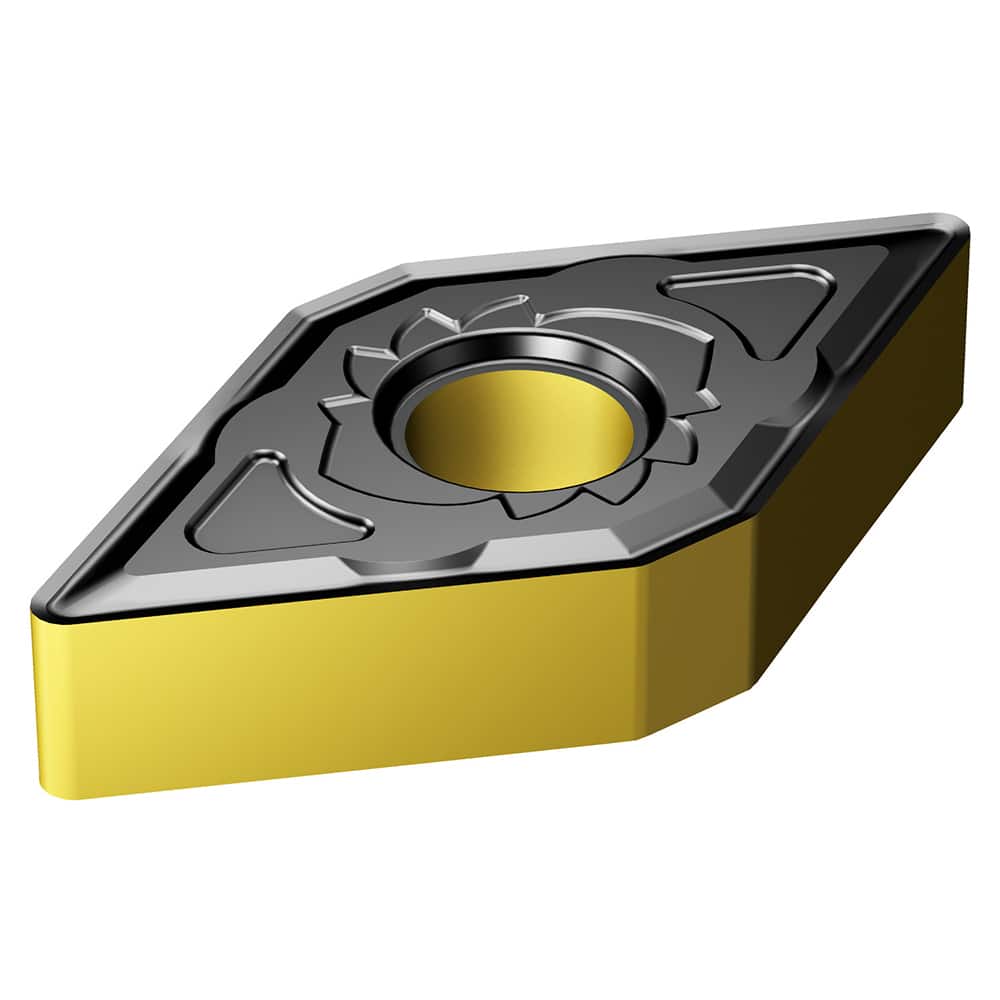

DNMG433-SM S205 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 1/2″ Inscribed Circle, 0.0469″ Corner Radius, 3/16″ Thick, 55° Square
Item #: 10206985
Brand: Sandvik Coromant
Model #: 8003630
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 150412 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | S205 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | S |
| Iso Code | DNMG 15 04 12-SM S205 |
| Manufacturers Catalog Number | DNMG433-SM |
| Cutting Direction | Neutral |
| Chip Breaker | G |
| Industry Standard Number | DNMG 15 04 12-SM S205 |
| Coating/Finish | TiCN; TiN; Al2O3 |
