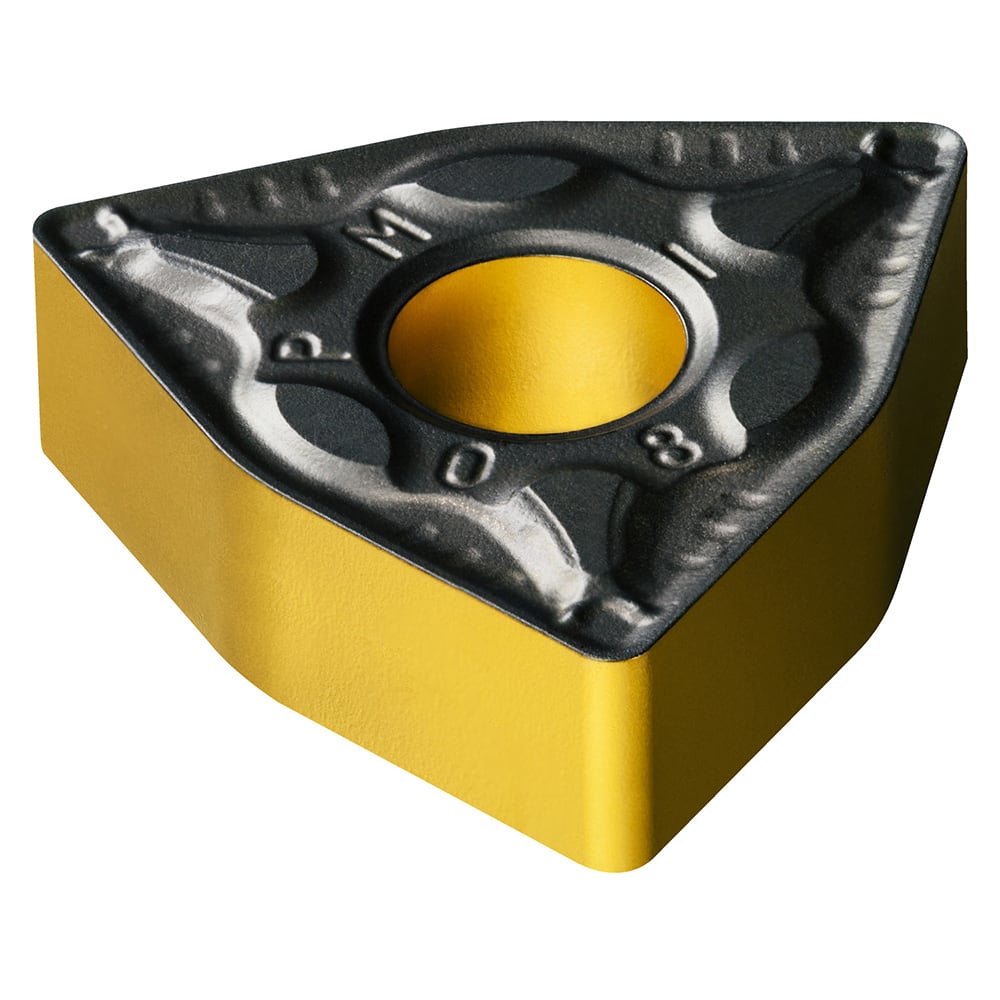

WNMG434-PM 4425 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 1/2″ Inscribed Circle, 3/16″ Thick, 80° Diamond
Item #: 10205383
Brand: Sandvik Coromant
Model #: 7860993
Product Specifications
| Insert Style | WNMG |
| Insert Shape Code | W |
| Insert Size Code | 080416 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/16 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P; K |
| Iso Code | WNMG 08 04 16-PM 4425 |
| Manufacturers Catalog Number | WNMG 434-PM |
| Cutting Direction | Neutral |
| Chip Breaker | G |
| Industry Standard Number | WNMG 08 04 16-PM 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
