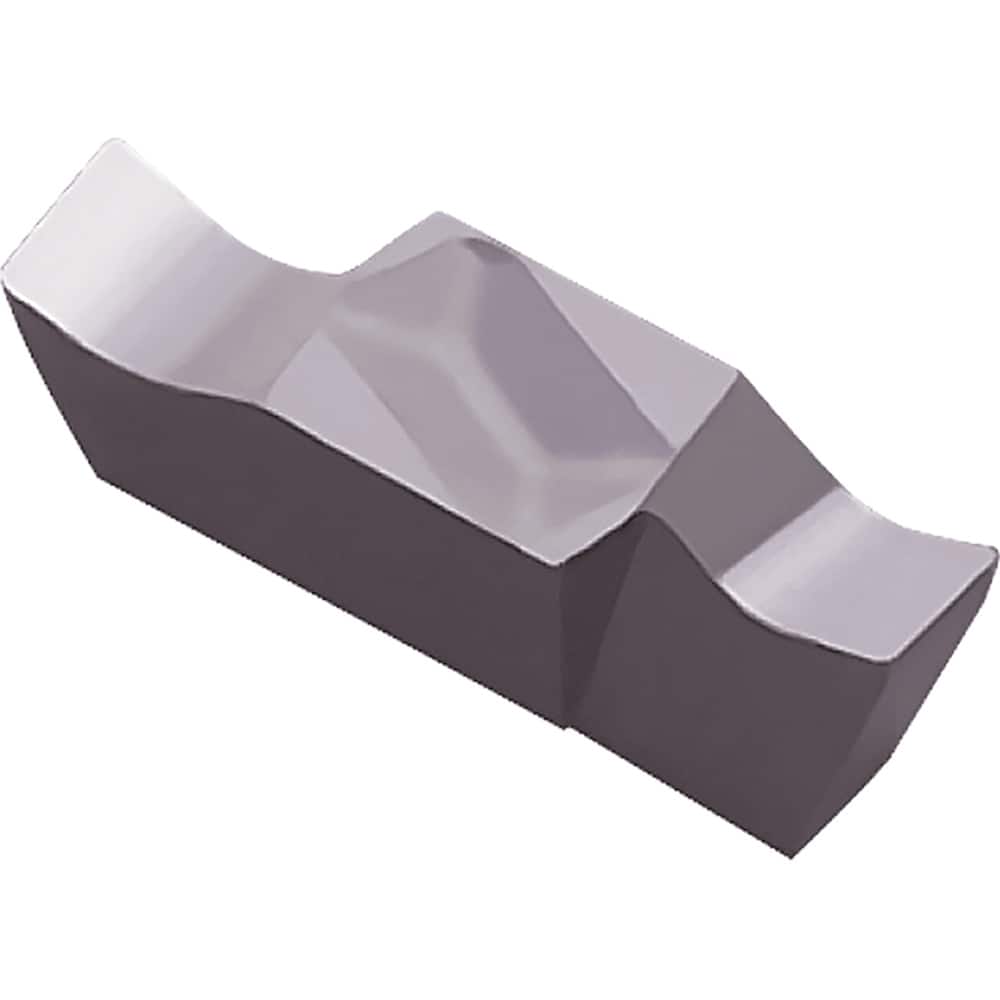

Grooving Insert: GV280020C PR1225, Solid Carbide Megacoat, Left Hand, 2.8 mm Cutting Width, 4.5 mm Max Depth, Series GV
Item #: 10161602
Brand: Kyocera
Model #: TKE15695
Product Specifications
| Insert Style | GV |
| Insert Size | 280020 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1225 |
| Cutting Width (mm) | 2.80 |
| Maximum Depth of Cut (mm) | 4.50 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 6.50 |
| Insert Hand | Left Hand |
| Corner Radius (mm) | 0.20 |
| Maximum Depth Of Cut Range (mm) | 4.00 to 5.00 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Series | GV |
| Coating Process | PVD |
| Rake Angle | 10.00 |
| Overall Length (Decimal Inch) | 0.8268 |
| Manufacturers Catalog Number | GVL280020CPR1225 |
| Chip Breaker | C |
| Coating/Finish | Megacoat |
| Number Of Cutting Edges | 2 |
| For Use With | GIVL?1CW; GIVL?1CE; GIVL?1C |
| Insert Thickness | 6.50 |
