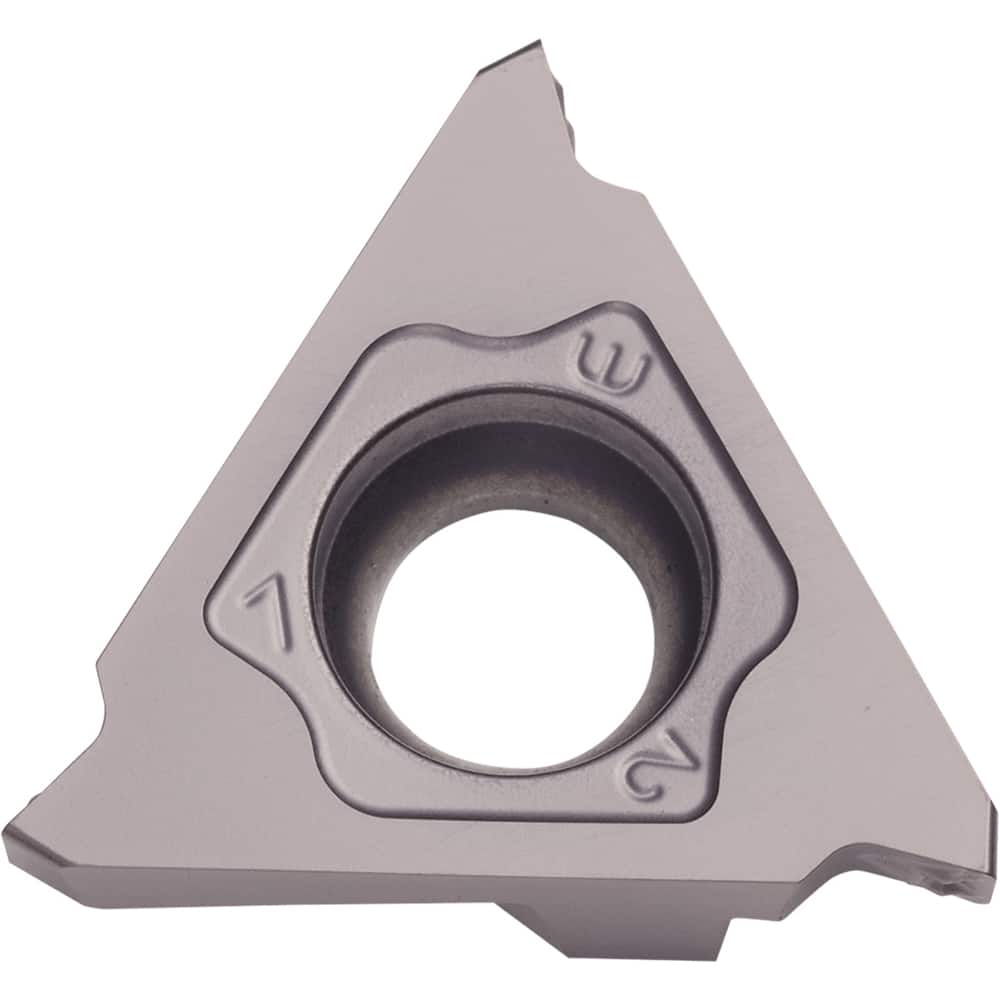

Grooving Insert: GBA43GM TN620, Cermet TiCN Finish, Right Hand, 4 mm Cutting Width, 5 mm Max Depth, Series HYBCERM
Item #: 10161560
Brand: Kyocera
Model #: TSR17730
Product Specifications
| Insert Style | GBA |
| Insert Size | 43 |
| Insert Material | Cermet |
| Manufacturer Grade | TN620 |
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Insert Holding Method | Screw; Clamp |
| Cutting Height (mm) | 4.76 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.40 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Rake | Positive |
| Multi-use Tool | No |
| Series | HYBCERM |
| Manufacturers Catalog Number | GBA43R400040GMTN620 |
| Chip Breaker | GM |
| Inscribed Circle (Inch) | 1/2 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Coating/Finish | TiCN |
| Number Of Cutting Edges | 3 |
| For Use With | KGBAR?22-35; KIGBAL?-4; KGBAR?-4-35; KIGBAL?-22; KGBASL?-4-35; KGBASL?22-35 |
| Insert Thickness | 4.76 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.50 |
