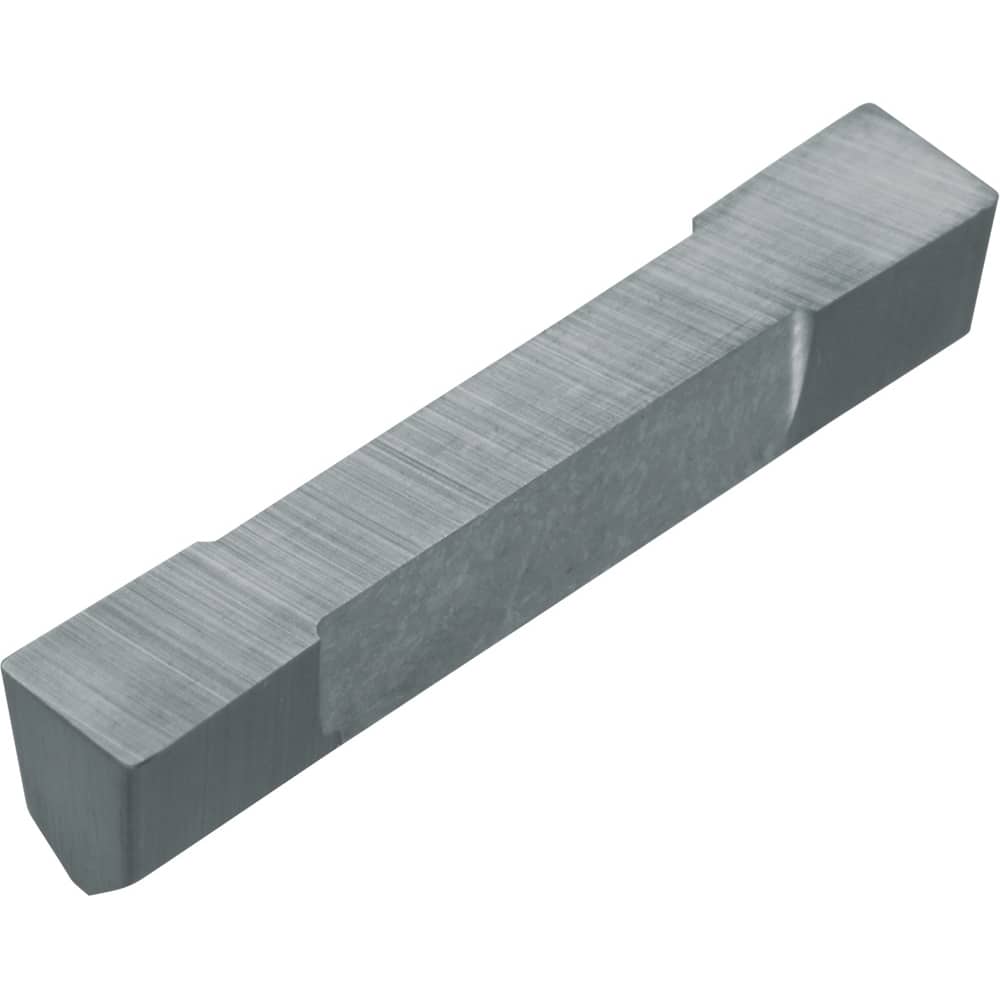

Kyocera - DB375R30 TN60 Cermet Grooving Insert
Item #: 10161107
Brand: Kyocera
Model #: 8864063
Product Specifications
| Insert Style | DB |
| Insert Size | 375 |
| Material | Cermet |
| Cutting Width (mm) | 9.530 |
| Cutting Width (Inch) | 3/8 |
| Maximum Depth of Cut (mm) | 19.00 |
| Manufacturer's Grade | TN60 |
| Coating | TiCN/NbC |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.2500 |
| Number of Cutting Edges | 2 |
| Multi-Use Application | External Grooving |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.75 |
| Coating Process | Uncoated |
| Series | KDB |
| Rake | Positive |
| ISO Number | DB375R30 |
| Manufacturers Catalog Number | DB375R30TN60 |
| Insert Thickness (mm) | 6.35 |
| Series Number | KDB |
| Insert Holding Method | Clamp |
