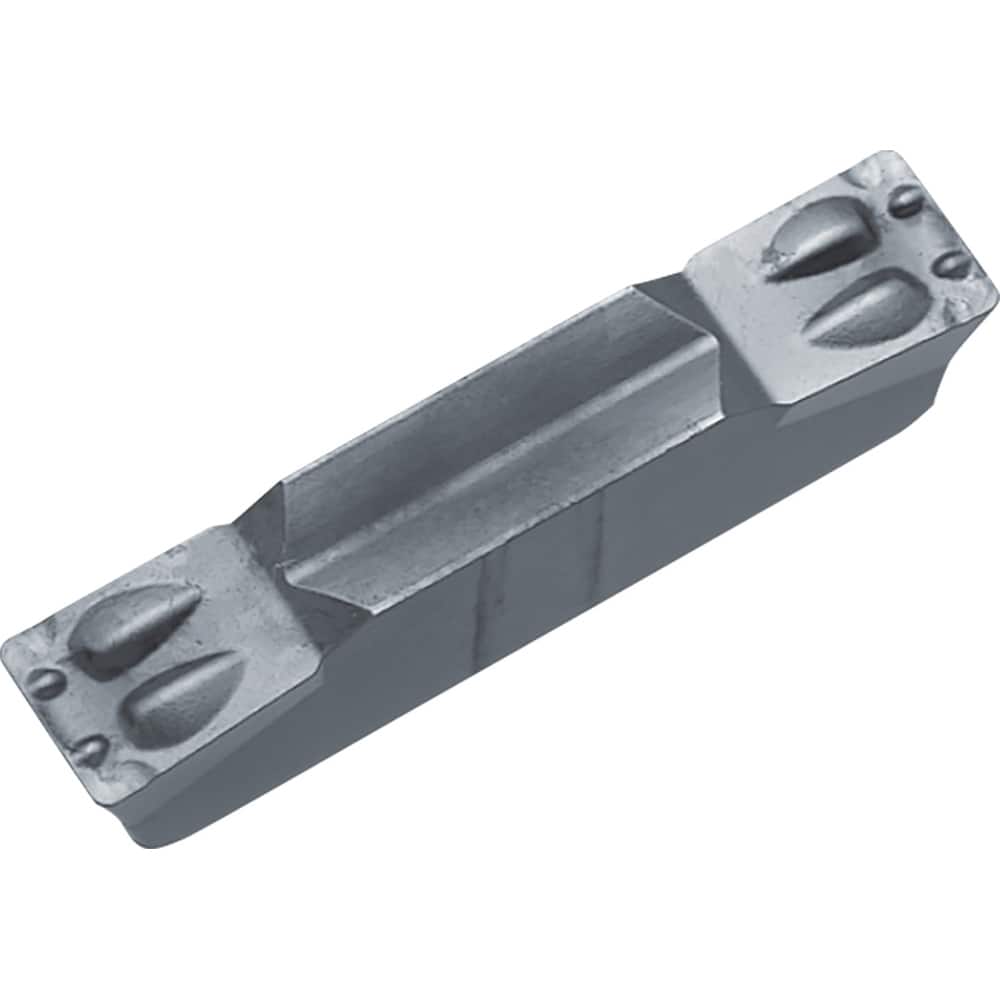

Kyocera - GMM5020-08V KW10 Carbide Grooving Insert
Item #: 10160950
Brand: Kyocera
Model #: 8820813
Product Specifications
| Insert Style | GMM |
| Insert Size | 502008 |
| Material | Carbide |
| Cutting Width (mm) | 5.000 |
| Maximum Depth of Cut (mm) | 11.00 |
| Manufacturer's Grade | KW10 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Number of Cutting Edges | 2 |
| Chipbreaker | V |
| Multi-Use Application | Internal Grooving |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.80 |
| Coating Process | Uncoated |
| Series | KGM |
| Rake | Positive |
| ISO Number | GMM5020-08V |
| Manufacturers Catalog Number | GMM502008VKW10 |
| Insert Thickness (mm) | 4.30 |
| Series Number | KGM |
| Insert Holding Method | Clamp |
