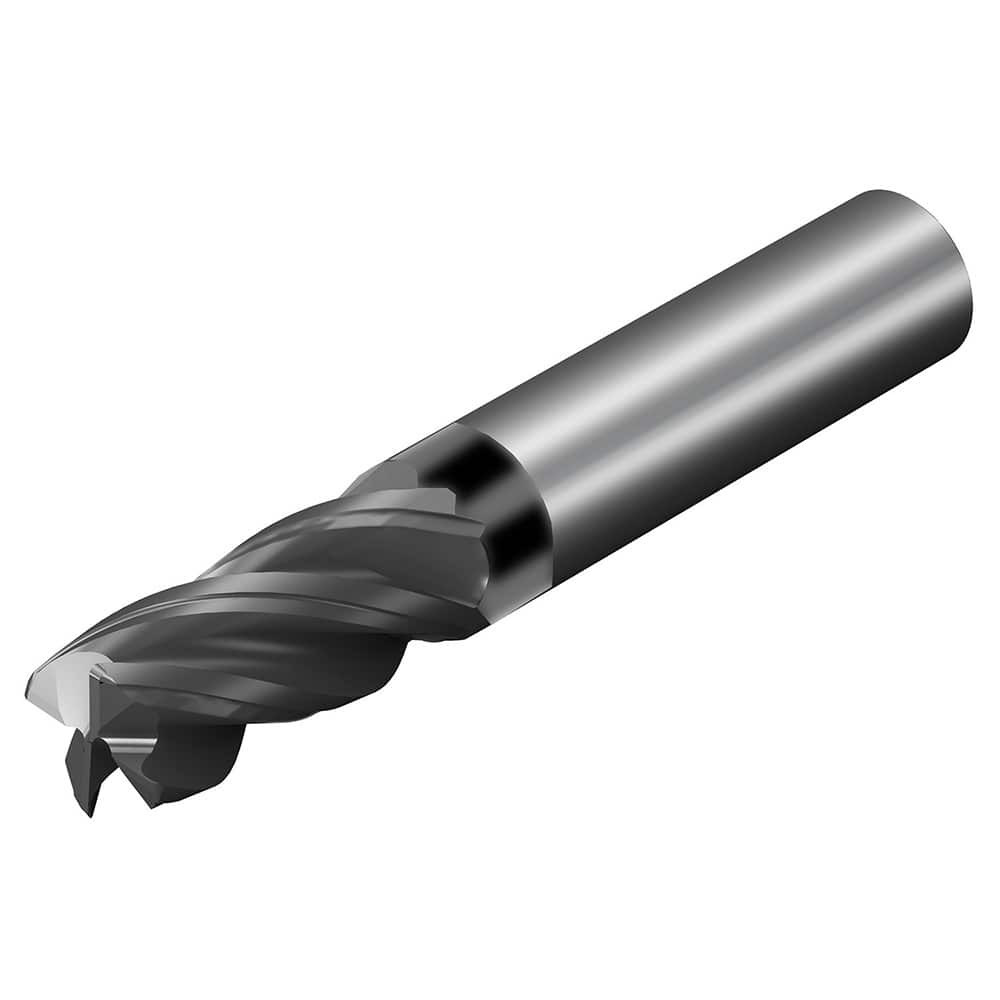

Square End Mill: 0.313'' Dia, 3/4'' LOC, 5/16'' Shank Dia, 2-1/2'' OAL, 4 Flutes, Solid Carbide Single End, AlTiN Finish, 36.5 ° Variable Helix, Centercutting, RH Cut, RH Flute, Series CoroMill Dura
Item #: 10148377
Brand: Sandvik Coromant
Model #: 8036194
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3130 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Helix Angle | 36.5 |
| Variable Helix | Yes |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 0.8000 |
| Length of Cut (Decimal Inch) | 0.7500 |
| Material Grade | X1BH |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Series | CoroMill Dura |
