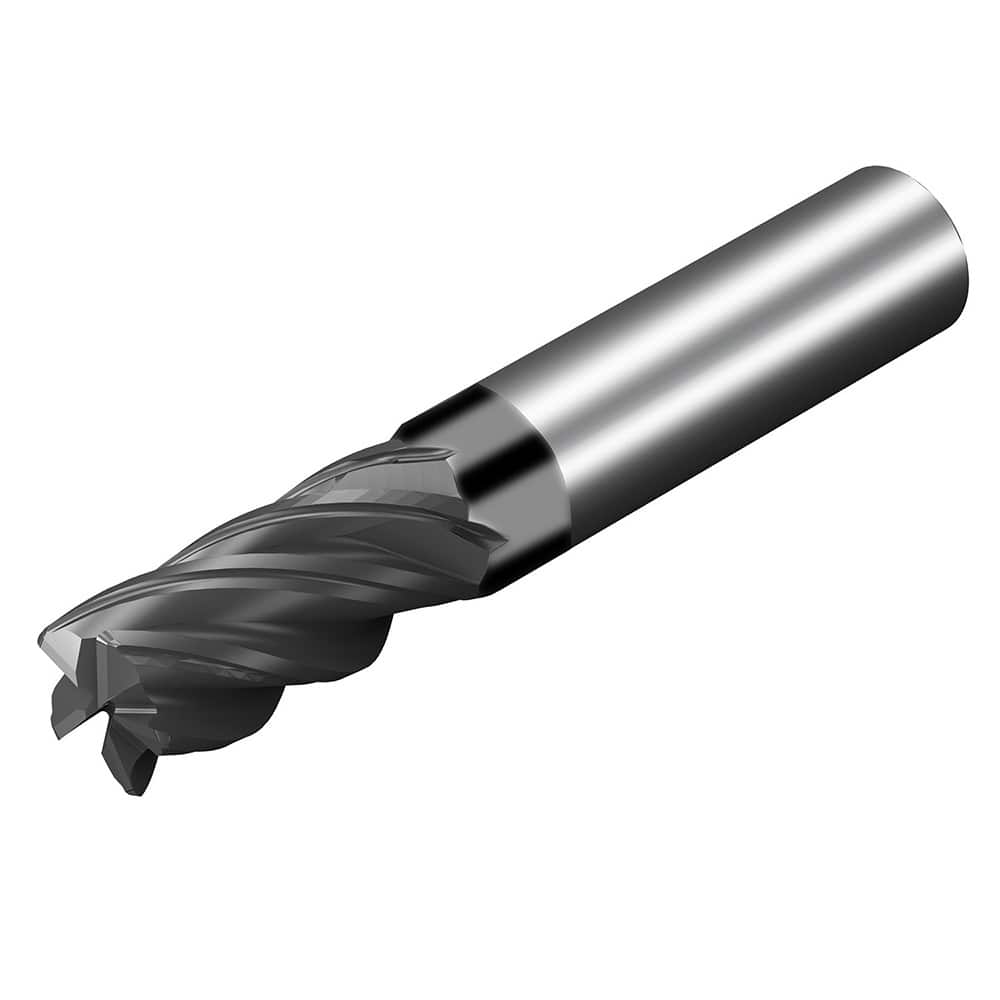

Square End Mill: 1/2'' Dia, 1-5/8'' LOC, 1/2'' Shank Dia, 4'' OAL, 5 Flutes, Solid Carbide Single End, AlTiN Finish, 36 ° Variable Helix, Centercutting, RH Cut, RH Flute, Series CoroMill Dura
Item #: 10148245
Brand: Sandvik Coromant
Model #: 8036826
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 1-5/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/2 |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 4 |
| Helix Angle | 36 |
| Variable Helix | Yes |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.5000 - 2.0000 |
| Length of Cut (Decimal Inch) | 1.6250 |
| Material Grade | X1BH |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Series | CoroMill Dura |
