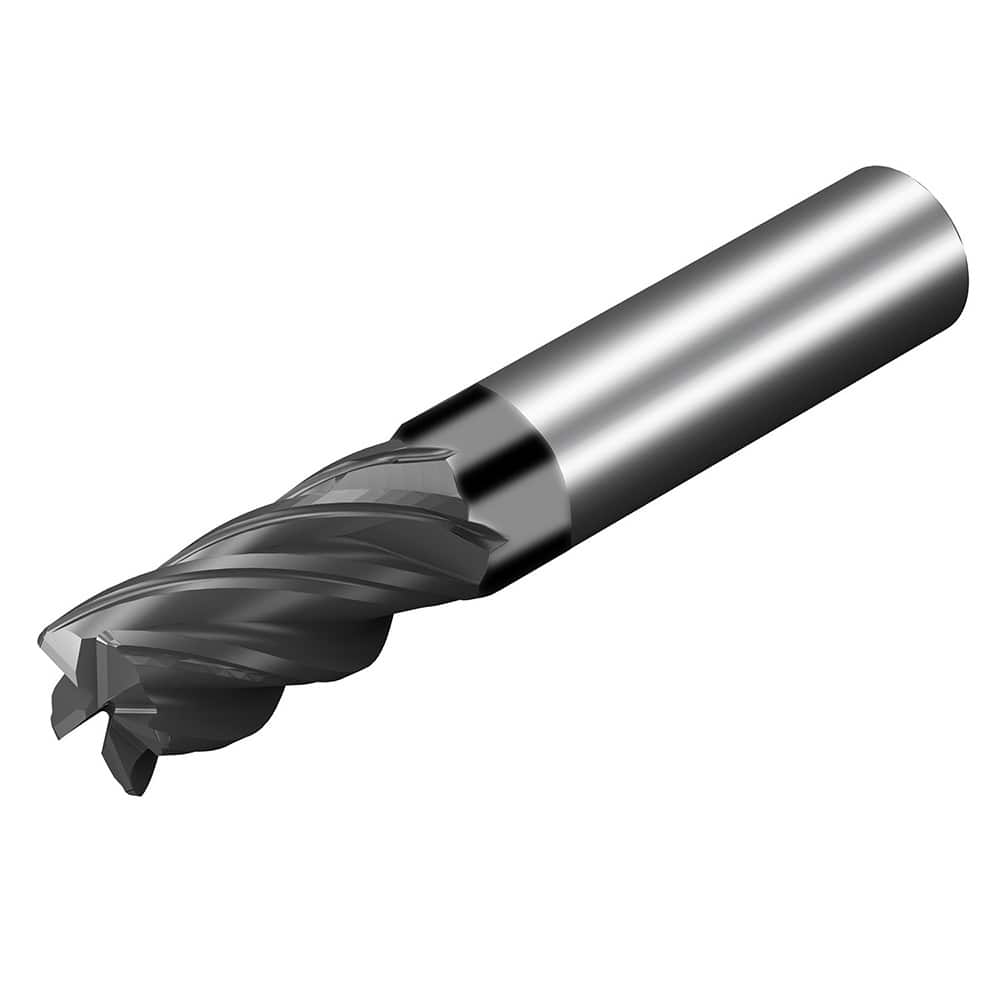

Square End Mill: 0.438'' Dia, 1'' LOC, 7/16'' Shank Dia, 2-3/4'' OAL, 5 Flutes, Solid Carbide Single End, AlTiN Finish, 36 ° Variable Helix, Centercutting, RH Cut, RH Flute, Series CoroMill Dura
Item #: 10148211
Brand: Sandvik Coromant
Model #: 8036803
Product Specifications
| Mill Diameter (Inch) | 7/16 |
| Mill Diameter (Decimal Inch) | 0.4380 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 1 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 2-3/4 |
| Helix Angle | 36 |
| Variable Helix | Yes |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.2500 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Material Grade | X1BH |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Overall Length (Decimal Inch) | 2.7500 |
| Flute Direction | Right Hand |
| Series | CoroMill Dura |
