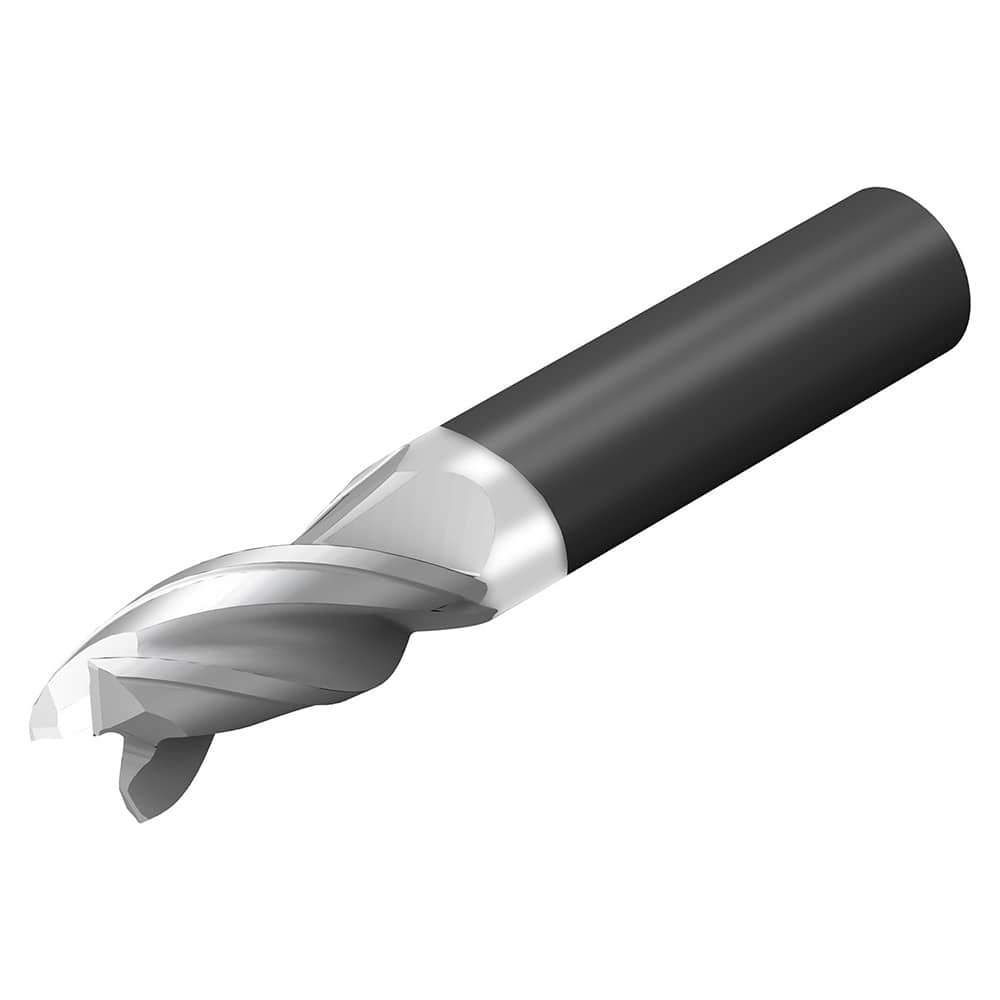

Square End Mill: 1/4'' Dia, 3/8'' LOC, 1/4'' Shank Dia, 2'' OAL, 3 Flutes, Solid Carbide Single End, ZrN Finish, 35 ° Variable Helix, Centercutting, RH Cut, RH Flute, Series CoroMill Dura
Item #: 10147833
Brand: Sandvik Coromant
Model #: 8037541
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 3/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Finish/Coating | ZrN |
| Overall Length (Inch) | 2 |
| Helix Angle | 35 |
| Variable Helix | Yes |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.3000 - 0.5000 |
| Length of Cut (Decimal Inch) | 0.3750 |
| Material Grade | N1BZ |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 2.0000 |
| Flute Direction | Right Hand |
| Series | CoroMill Dura |
