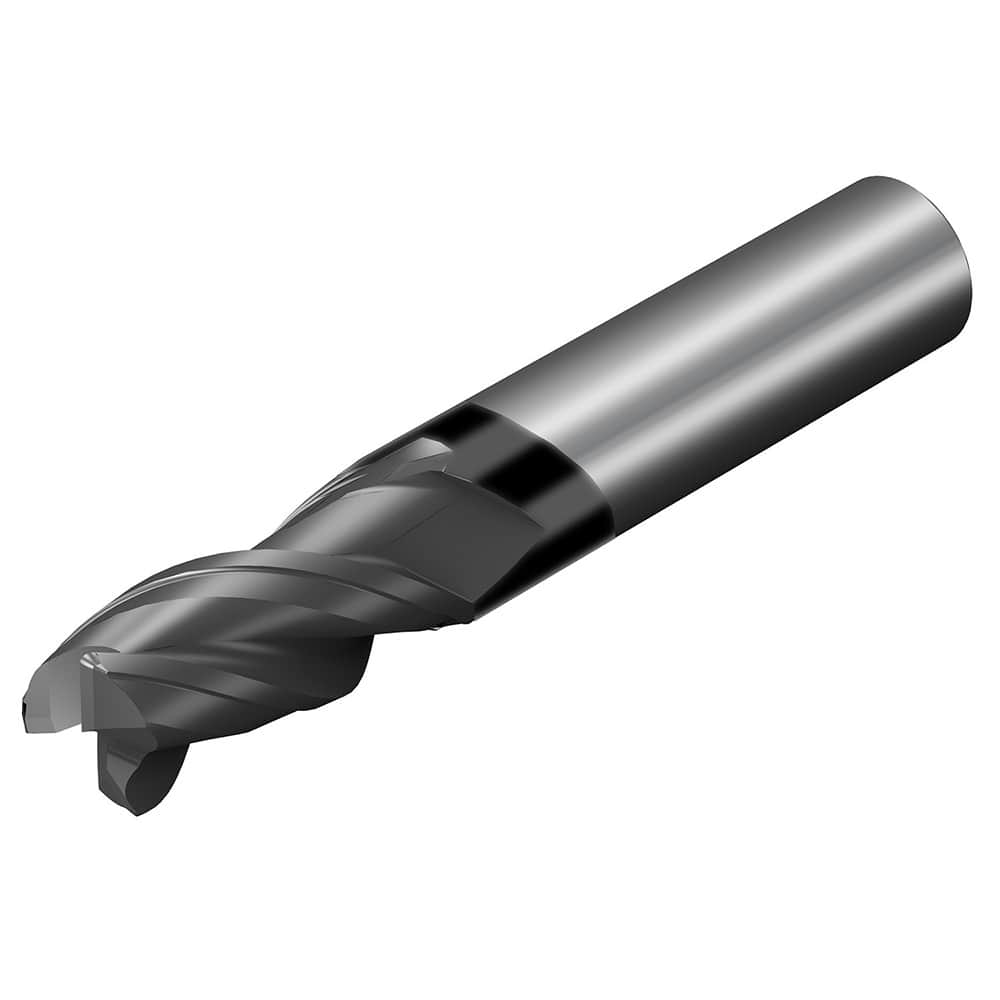

Corner Radius End Mill: 0.188″ Dia, 0.313″ LOC, 0.013″ Radius, 3 Flutes, Solid Carbide 1-1/2″ OAL, 0.188″ Shank Dia, 38 ° Helix, AlTiN Coated, Corner Radius End, Centercutting, Series CoroMill Dura
Item #: 10145522
Brand: Sandvik Coromant
Model #: 8035569
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1880 |
| Mill Diameter (mm) | 4.78 |
| Corner Radius (Decimal Inch) | 0.0130 |
| Length of Cut (mm) | 7.95 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Overall Length (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | X1BH |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3130 |
