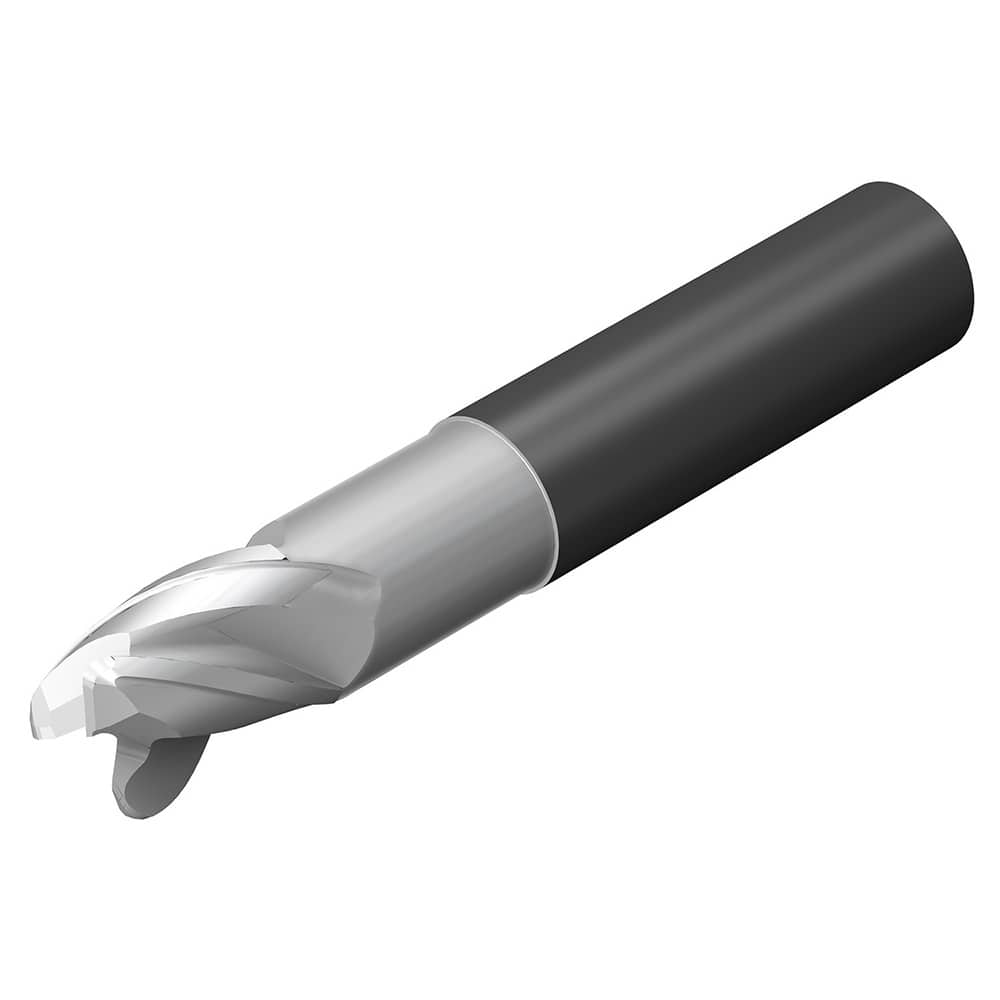

Corner Radius End Mill: 1/2″ Dia, 5/8″ LOC, 0.09″ Radius, 3 Flutes, Solid Carbide 3″ OAL, 1/2″ Shank Dia, 35 ° Helix, ZrN Coated, Corner Radius End, Centercutting, Series CoroMill Dura
Item #: 10143071
Brand: Sandvik Coromant
Model #: 8038689
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Length of Cut (Inch) | 5/8 |
| Corner Radius (Decimal Inch) | 0.0900 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 35 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | N1BZ |
| Single Or Double End | Single |
| Coating/Finish | ZrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
