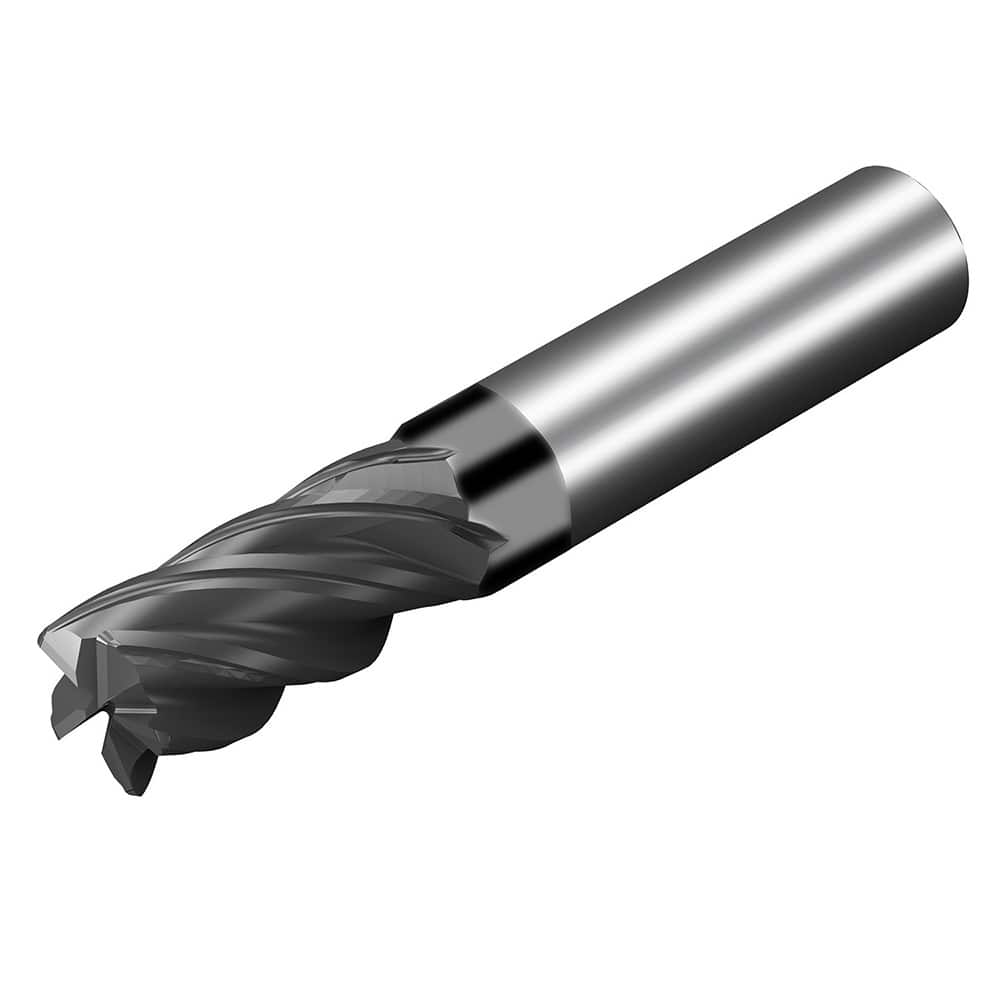

Corner Radius End Mill: 1/2″ Dia, 1″ LOC, 0.03″ Radius, 5 Flutes, Solid Carbide 6″ OAL, 1/2″ Shank Dia, 36 ° Helix, AlTiN Coated, Corner Radius End, Centercutting, Series CoroMill Dura
Item #: 10138105
Brand: Sandvik Coromant
Model #: 8036838
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Length of Cut (Inch) | 1 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 36 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | X1BH |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
