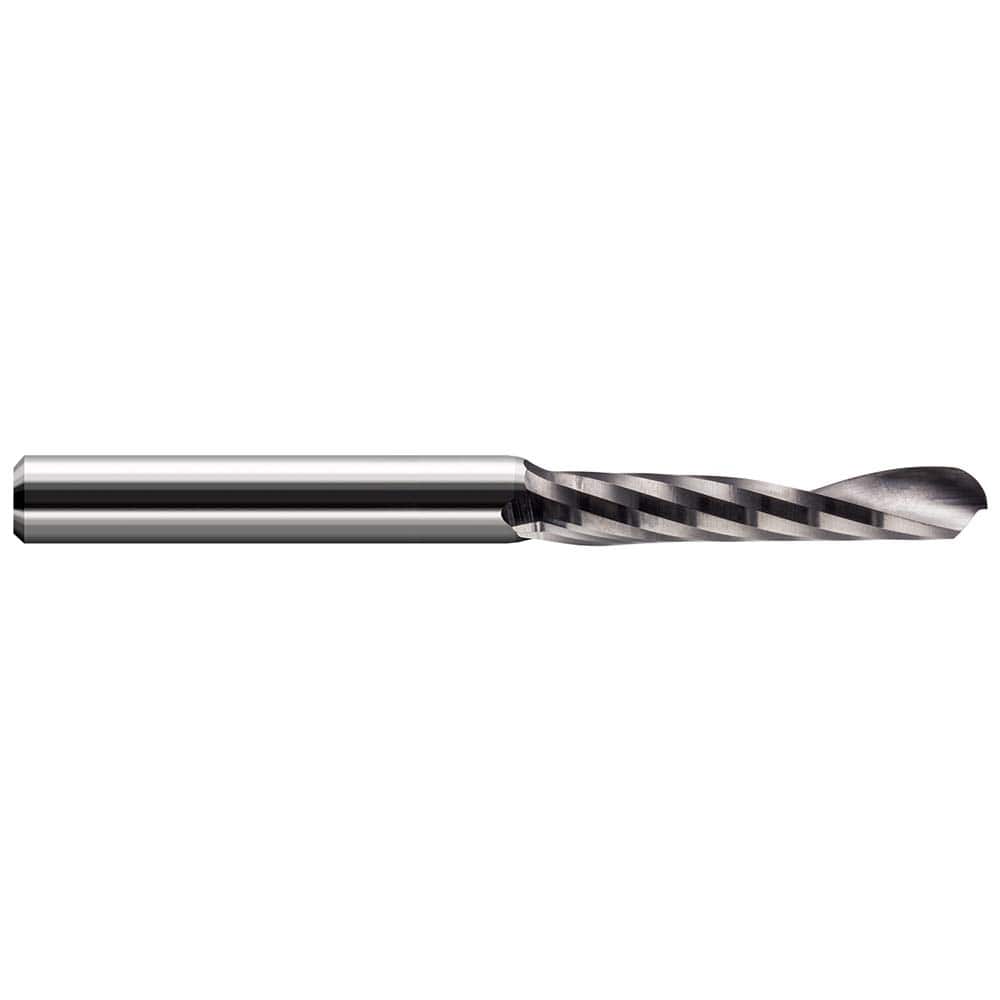

Harvey Tool - Ball End Mills; Mill Diameter (Inch): 1/8 ; Mill Diameter (Decimal Inch): 0.1250 ; Number of Flutes: 1 ; Length of Cut (Inch): 5/8 ; Length of Cut (Decimal Inch): 0.6250 ; Material: Solid Carbide
Item #: 10073674
Brand: Harvey Tool
Model #: 842308
Product Specifications
Ball End Mills; Mill Diameter (Inch): 1/8 ; Mill Diameter (Decimal Inch): 0.1250 ; Number of Flutes: 1 ; Length of Cut (Inch): 5/8 ; Length of Cut (Decimal Inch): 0.6250 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number of Flutes | 1 |
| Length of Cut (Inch) | 5/8 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.00000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Finish/Coating | Uncoated |
| Single or Double End | Single |
| Helix Angle | 22 |
| Variable Helix | No |
| Flute Type | Upcut |
| Series/List | End Mills for Plastics - Ball Upcut - Single Flute |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
