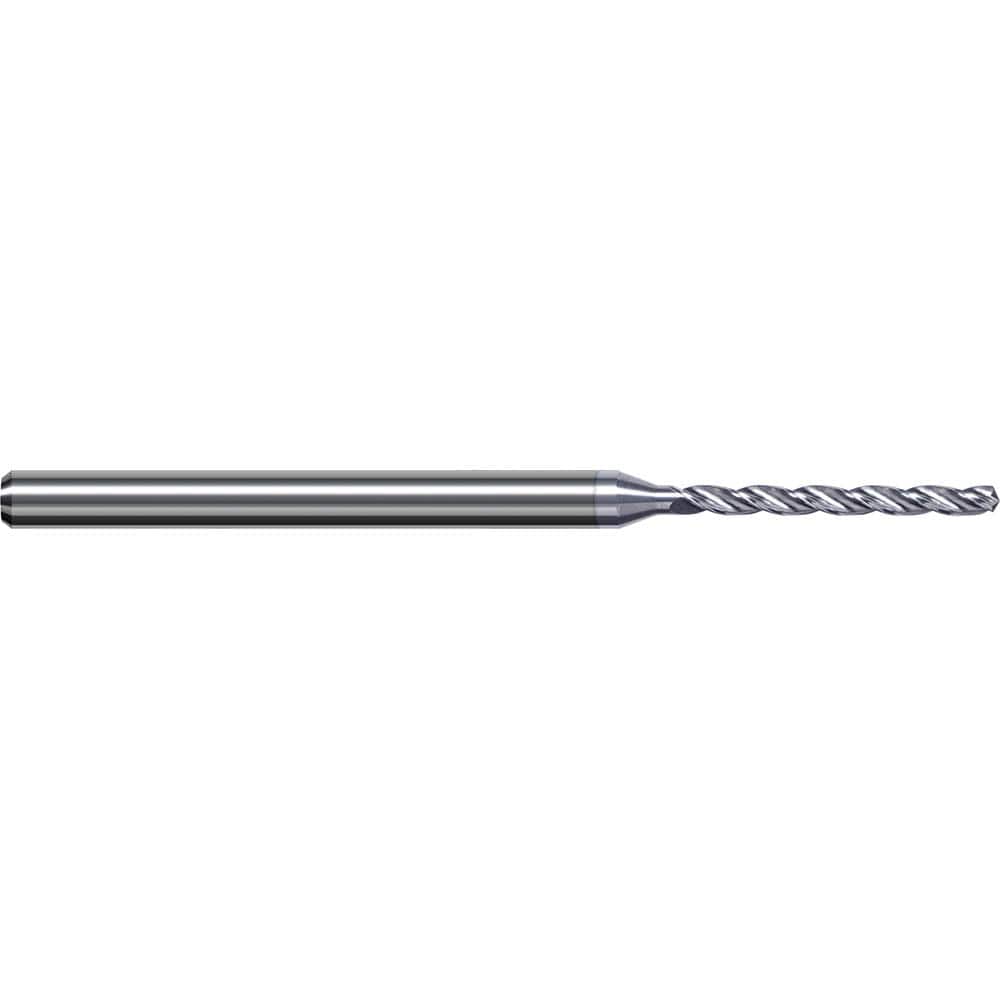

Jobber Length Drill Bit: 0.147″ Dia, 130 °, Solid Carbide TiB2 Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 10007607
Brand: Harvey Tool
Model #: ERY1470-C8
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1470 |
| Drill Bit Size (Wire) | #26 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiB2 |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 3 |
| Overall Length (mm) | 100.00 |
| Flute Length (mm) | 44.00 |
| Flute Length (Decimal Inch) | 1.7323 |
| Flute By Diameter Ratio | 10xD |
| Shank Diameter (mm) | 6.00 |
| Drill Bit Diameter Tolerance | h6 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
