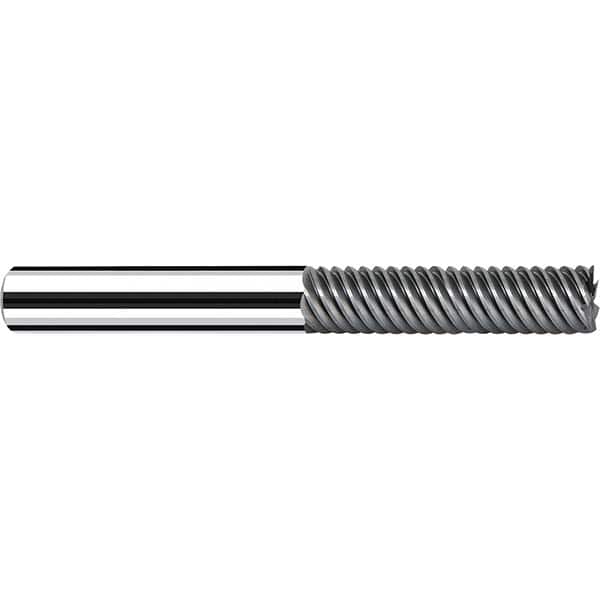

Fraisa - 1, 4" LOC, 1" Shank Diam, 7" OAL, 7 Flute Solid Carbide Square End Mill
Item #: 18923920
Brand: Fraisa
Model #: P15851777
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1 |
| Number of Flutes | 7 |
| Length of Cut (Inch) | 4 |
| Material | Solid Carbide |
| Finish/Coating | Polychrom |
| Shank Diameter (Inch) | 1 |
| Single or Double End | Single |
| Overall Length (Inch) | 7 |
| Center Cutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 65 |
| Variable Helix | Yes |
| Flute Type | Spiral |
| Chipbreaker | No |
| Series/List | Multicut XF |
