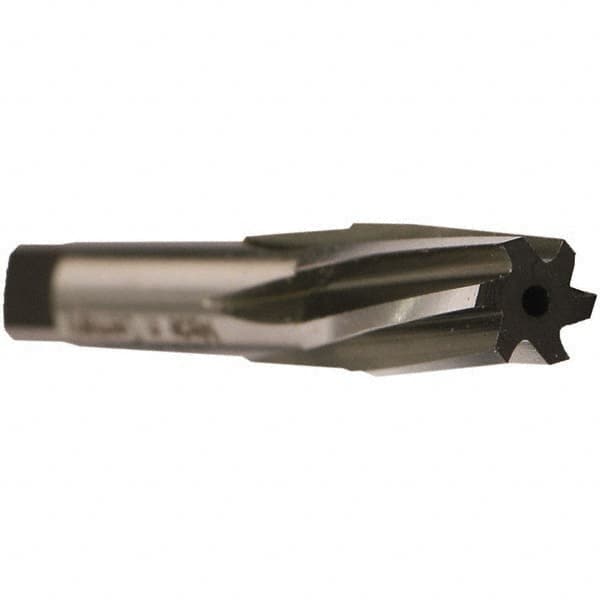

Emuge - 1/2" Pipe, 0.6673" Small End Diam, 0.6299" Straight Shank, 35mm Flute, Taper Pipe Reamer
Item #: 73545618
Brand: Emuge
Model #: G0037175.5767
Features and Benefits
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
Straight shanks are used for general purpose applications. The shank is smaller than the drill bit diameter. They are used with portable drills and drill presses on ferrous and non-ferrous materials.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Pipe Size (Inch) | 1/2 |
| Pipe Size (Decimal Inch) | 0.5000 |
| Small End Diameter (Decimal Inch) | 0.6673 |
| Flute Length (mm) | 35.00 |
| Flute Length (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 95.00 |
| Overall Length (Decimal Inch) | 3.7402 |
| Flute Type | Spiral |
| Shank Type | Straight |
| Number of Flutes | 8 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Body Diameter (Decimal Inch) | 0.7520 |
