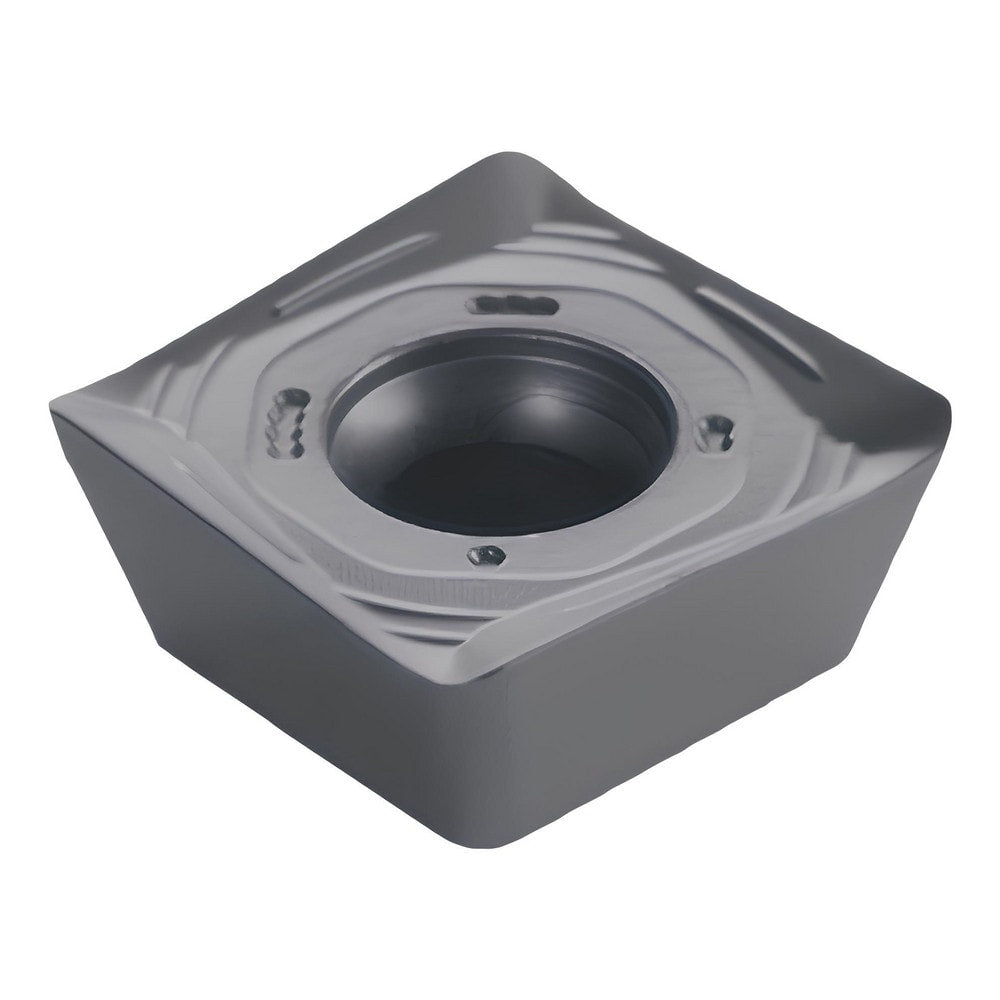

Milling Insert: SDKT09T308SR-GR XC1015, Solid Carbide
Item #: 33626755
Brand: OSG
Model #: 7812075
Product Specifications
| Insert Style | SDKT |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | XC1015 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 15.00 |
| Insert Size Code | 09T308 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.3571 |
| Inscribed Circle (mm) | 9.00 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Series | 78PSF |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SDKT09T308SR-GR |
| Iso Code | SDKT09T308SR-GR |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | 7812075 |
| Cutter Series Compatibility | 78PSF |
| Chip Breaker | GR |
| UNSPSC Code | 23171618 |
| Material Application | Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 2.50 |
| Width (Decimal Inch - 4 Decimals) | 0.3571 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3571 |
