Turning Insert: TPGW730.5 TH10, Carbide
Item #: 20863932
Brand: Tungaloy
Model #: 6808986

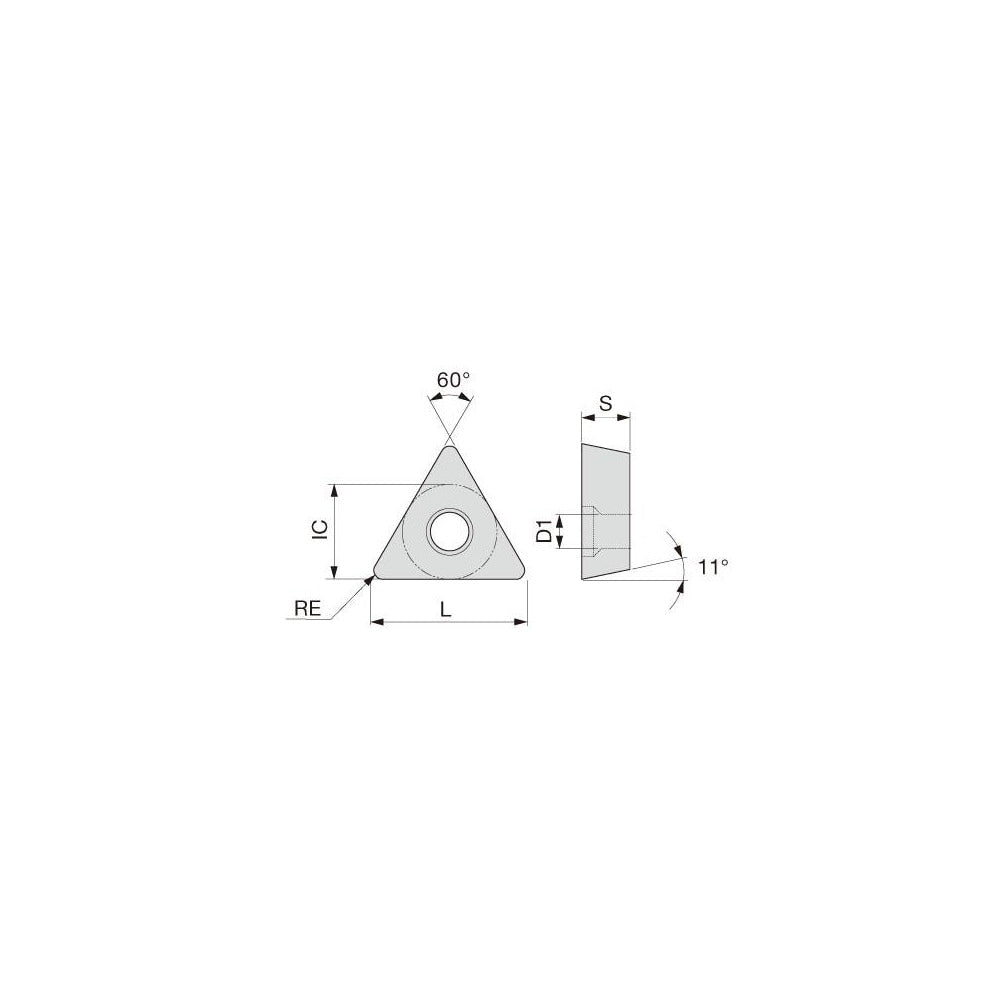

Product Specifications
| ANSI Insert Code | TPGW730.5 |
| ISO Insert Code | TPGW090202 |
| Relief Angle | 11 |
| Insert Style | TPGW |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Included Angle | 60 |
| Manufacturer Grade | TH10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | TPGW |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.0980 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3780 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Cast Iron; Superalloys & Titanium |
| Primary Workpiece Material Code | S; K; N |
| Iso Code | TPGW730.5 TH10 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6808986 |
| Material Grade | K10; N10; M10; P10 |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Cutting Edge Style | Honed |
| Industry Standard Number | TPGW 730.5 |
| Width (Decimal Inch - 4 Decimals) | 0.3780 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 730.5 |
| ISO Size Code | 090202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 730.5 |
