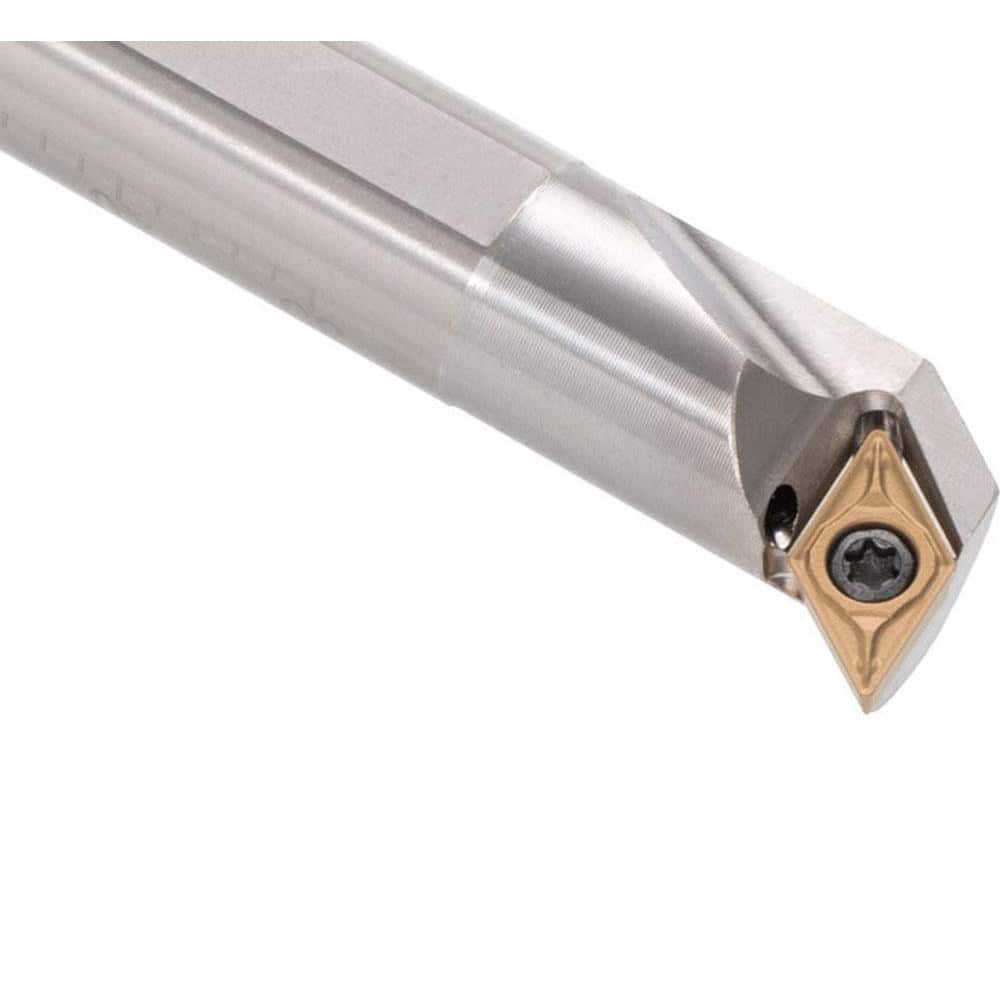

Indexable Boring Bar: E16R-SDUPR07-D220, 22.00 mm Min Bore, 16.00 mm Shank Dia, 93.00° N/A Solid Carbide 200.0000″ OAL, Screw,
Item #: 09999335
Brand: Tungaloy
Model #: 6762783
Product Specifications
| Minimum Bore Diameter (mm) | 22.00 |
| Maximum Bore Depth (mm) | 112.00 |
| Toolholder Style | SDUP |
| Tool Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 16.0000 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Inch) | 16 |
| Overall Length (Decimal Inch) | 200.0000 |
| Overall Length (mm) | 200.00 |
| Overall Length (Inch) | 200 |
| Compatible Insert Size Code | 21.5 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 0.00 |
| Lead Angle | 93.00 |
| Series | SDUP |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0940 |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (mm) | 12.30 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
