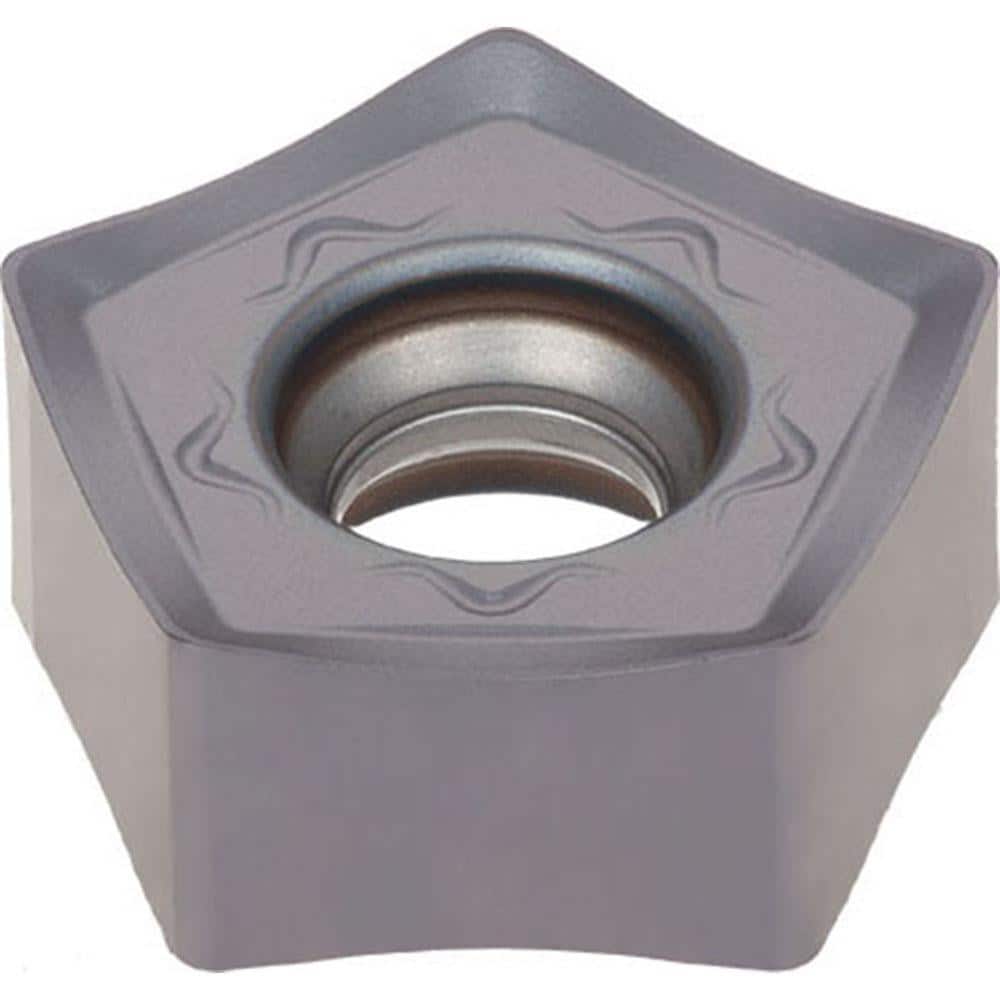

Milling Insert: AH8015, Solid Carbide N/A Finish,
Item #: 09989153
Brand: Tungaloy
Model #: 6765858
Product Specifications
| Insert Style | PNMU |
| Insert Size Code | 09 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH8015 |
| Inscribed Circle (Decimal Inch) | 0.4800 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Insert Hand | Neutral |
| Series | PNMU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Number Of Cutting Edges | 10 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3500 |
| Insert Shape | Pentagon |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Superalloy; Stainless Steel |
| Primary Workpiece Material Code | S; H; M |
| Chip Breaker | MJ |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
