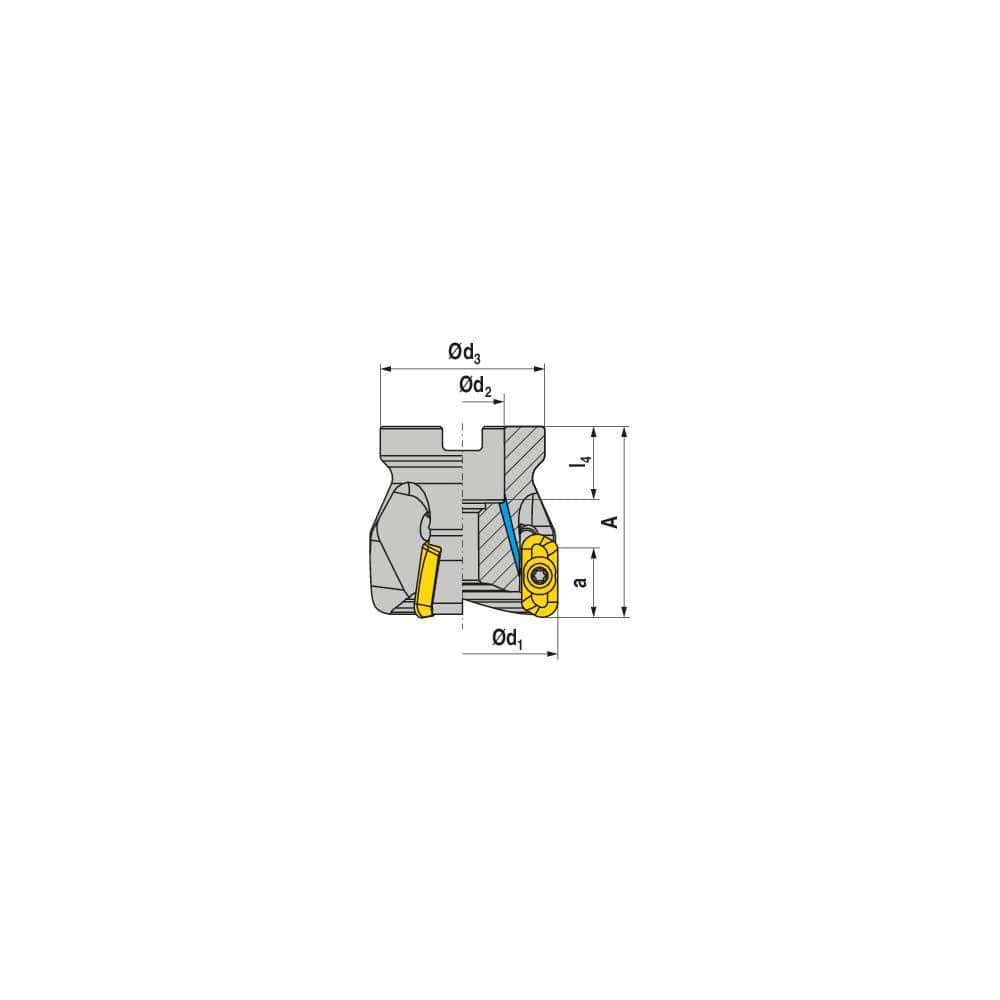

Indexable Square-Shoulder Face Mill: AHSC.50.R.04-19, 22.0000″ Arbor Hole Dia, Uses 4, XD..1904.. Inserts, Through Coolant, Series AHSC-19
Item #: 09983586
Brand: Ceratizit
Model #: 50716050
Product Specifications
| Minimum Cutting Diameter (mm) | 50.00 |
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 18.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Inch) | 22 |
| Arbor Hole Diameter (Decimal Inch) | 22.0000 |
| Compatible Insert Size Code | XD..1904.. |
| Maximum Ramping Angle | 4.00 |
| Cutter Style | AHSC |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | AHSC-19 |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Hub Diameter (mm) | 22.00 |
| Hub Diameter (Decimal Inch) | 22.0000 |
| Hub Diameter (Inch) | 22 |
| Maximum RPM | 21600 |
| Tool Application | Facing; Helical Interpolation; Ramping; Slotting; Shouldering |
| Primary Workpiece Material | Non-Ferrous Metal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
