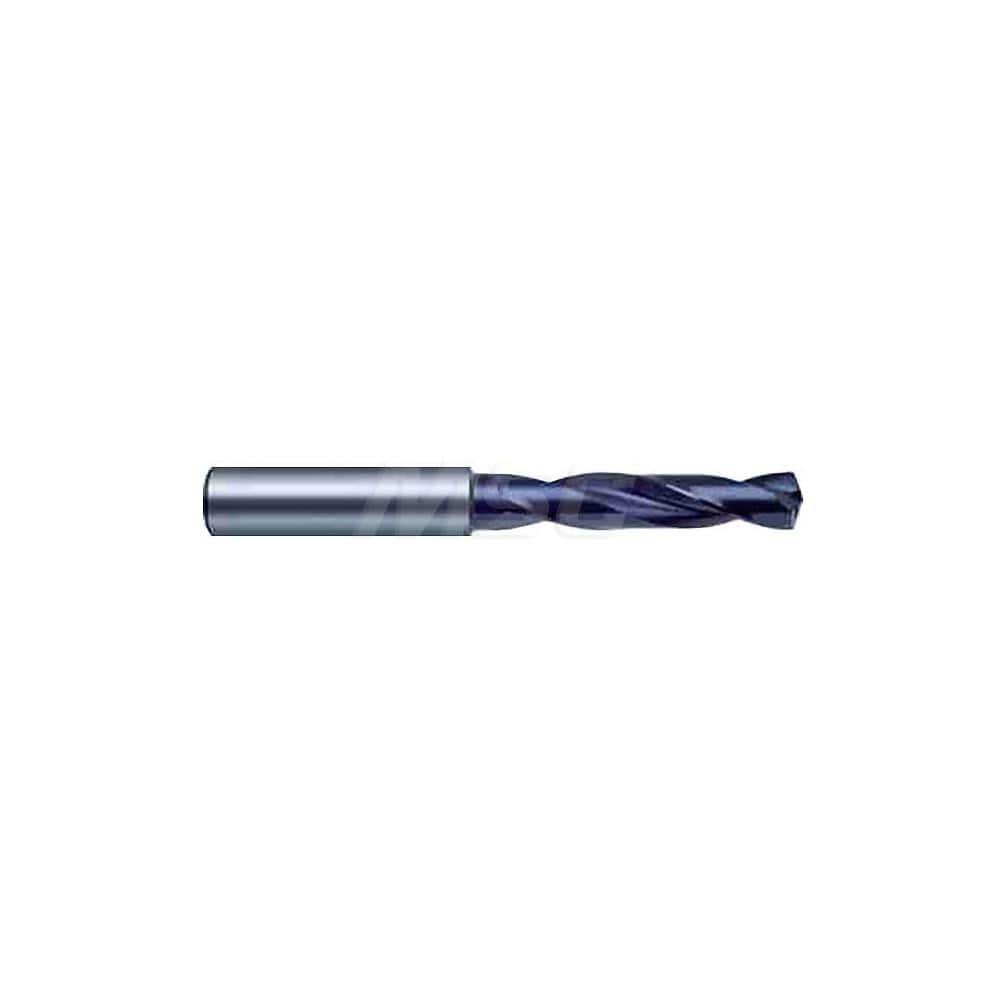

Screw Machine Length Drill Bit: 0.2047″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5510
Item #: 09872623
Brand: Guhring
Model #: 9055100052000
Product Specifications
| Drill Bit Size (mm) | 5.20 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | SU |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Bit Size (Decimal Inch) | 0.2047 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.00 |
| Series | 5510 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (mm) | 25.00 |
| Shank Length (Decimal Inch) | 1.4961 |
| Shank Length (mm) | 38.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.004 to +0.016 mm |
| Standards | DIN 6537 K |
| Flute Length (mm) | 28.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 to 6.50 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| Material Grade | Submicron |
 | |
| MSC Part # | 09872623 |
| Mfr Part # | 9055100052000 |
| Big Book Page # | 145 |
| Country of OriginCountry of Origin is subject to change | Germany |
