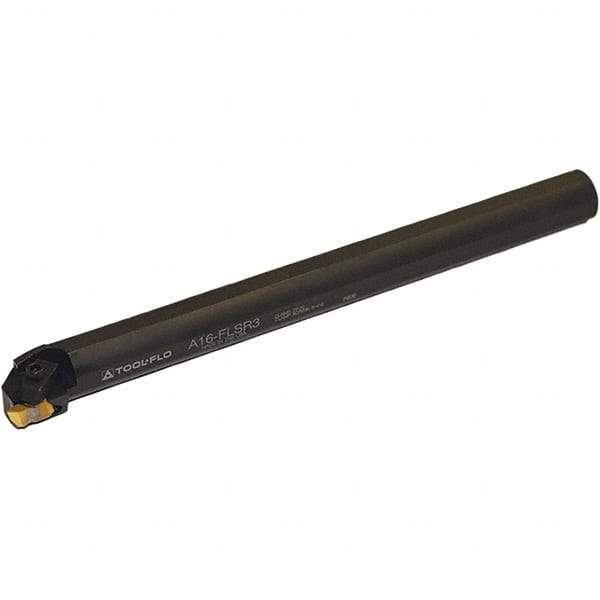

Tool-Flo - A-FLSR, Internal, Right Hand, 0.29" Max Depth of Cut, Indexable Grooving Tool Holder - FLFD-3RI Insert Compatibility, 1" Shank Width, 12" OAL, Through Coolant
Item #: 09851510
Brand: Tool-Flo
Model #: 96521616
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2900 |
| Overall Length (Decimal Inch) | 12.0000 |
| Toolholder Style | A-FLSR |
| Insert Compatibility | FLFD-3RI |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Flo-Lock |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Manufacturers Catalog Number | A16-FLSR3 |
| Complete Insert Compatibility | FLFD-3125RI; FLFD-3125RI-CB; FLFD-3189RI; FLFD-3189RI-CB |
| Minimum Bore Diameter (Decimal Inch) | 2.2500 |
| Shank Diameter (Decimal Inch) | 1.0000 |
