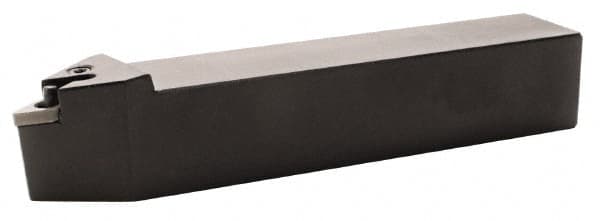

Kennametal - PDNN, Left Hand Cut, 27.5° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, DN..1104.. Insert Compatibility, Series Kenlever
Item #: 09835919
Brand: Kennametal
Model #: 1244659
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PDNN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Kenlever |
| Lead Angle | 27.5 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | DN..1104.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
