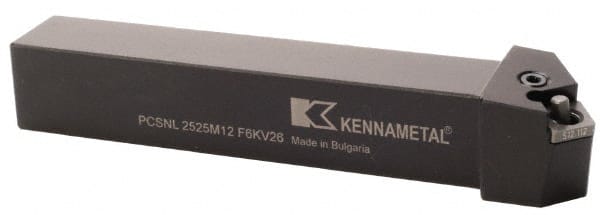

Kennametal - LH PCSN 0° Neutral Rake Indexable Turning Toolholder
Item #: 09835885
Brand: Kennametal
Model #: 1244655
Product Specifications
| Hand of Holder | Left Hand |
| Toolholder Style | PCSN |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Kenlever |
| Lead Angle | 45 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | CN..1204.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Head Length (mm) | 28.00 |
| Head Length (Decimal Inch) | 1.1024 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
| Through Coolant | No |
| OverallLength (mm) | 150.00 |
