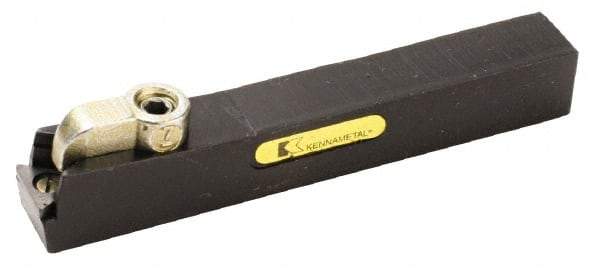

Kennametal - CTCP, Neutral Cut, 0° Lead Angle, 25mm Shank Height x 14mm Shank Width, Positive Rake Indexable Turning Toolholder - 150mm OAL, TP..1603.. Insert Compatibility, Series Kendex
Item #: 09835075
Brand: Kennametal
Model #: 1097776
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | CTCP |
| Rake | Positive |
| Rake Angle | 3 |
| Series | Kendex |
| Lead Angle | 0 |
| Shank Width (mm) | 14.00 |
| Shank Width (Decimal Inch) | 0.5512 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | TP..1603.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 14.40 |
| Head Length (mm) | 28.00 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
