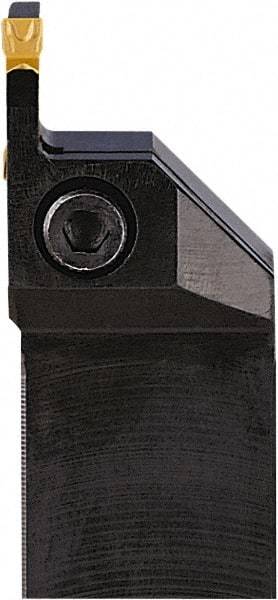

Seco - CFI, Right Hand Cut, 12mm Shank Height x 12mm Shank Width, Indexable Turning Toolholder - 150mm OAL, LC..1603.. Insert Compatibility, Series Multi-Directional Turning (MDT)
Item #: 09764606
Brand: Seco
Model #: 12602
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CFI |
| Series | Multi-Directional Turning (MDT) |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | LC..1603.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1181 |
