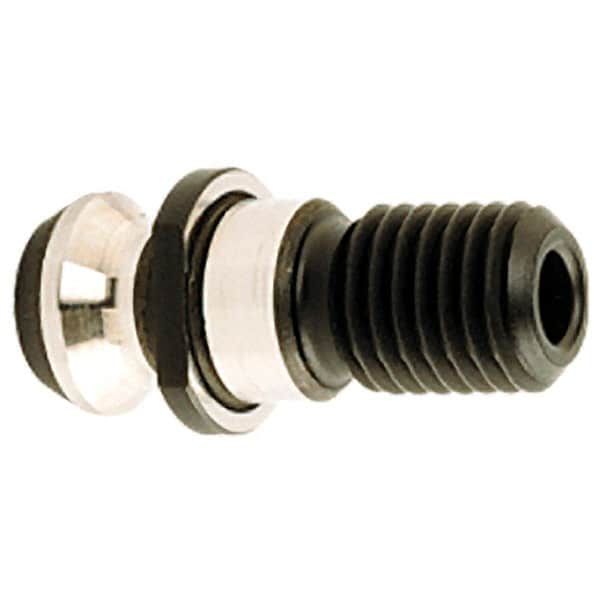

Iscar - BT50 Taper, M24x3 Thread, 45° Angle Radius, Standard Retention Knob - 2.5669" OAL, 1.1417" Knob Diam, 1" from Knob to Flange, 0.315" Coolant Hole, Through Coolant
Item #: 09741422
Brand: Iscar
Model #: 4517017
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | BT50 |
| Thread Size | M24x3 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 1.1417 |
| Through Coolant | Yes |
| Neck Diameter (Decimal Inch) | 0.8189 |
| Overall Length (Decimal Inch) | 2.5669 |
| Knob to Flange Length (Decimal Inch) | 0.9921 |
| Coolant Hole Diameter (Decimal Inch) | 0.3150 |
