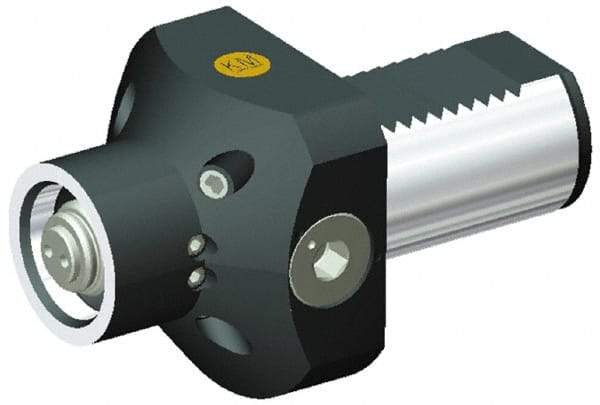

Kennametal - Neutral Cut, KM63 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 62.99mm Square Shank Diam, 3-15/16" OAL, Through Coolant, Series CL2NT-EF Flange Mount Top Access
Item #: 09731894
Brand: Kennametal
Model #: 2044937
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Adapter/Mount |
| Series Code | CL2NT-EF Flange Mount Top Access |
| Connection Size | KM63 |
| Cutting Direction | Neutral |
| Shank Diameter (mm) | 62.99 |
| Shank Diameter (Decimal Inch) | 2.4800 |
| Through Coolant | Yes |
| Head Height (mm) | 76.00 |
| Head Height (Decimal Inch) | 2.9920 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Head Length (Decimal Inch) | 3.1500 |
| Head Length (mm) | 80.01 |
| Shank Length (mm) | 19.99 |
| Shank Length (Decimal Inch) | 0.7870 |
