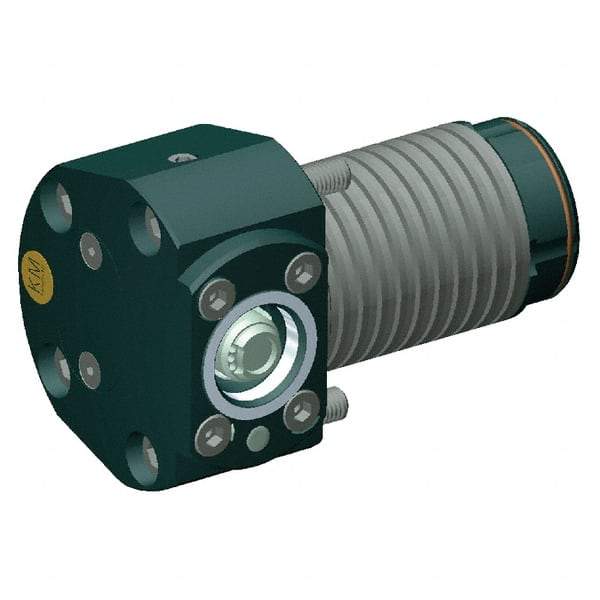

Kennametal - Neutral Cut, KM40 Modular Connection, Spring Pack Lathe Modular Clamping Unit - 62mm Square Shank Diam, 5.904" OAL, Through Coolant, Series NACA-DS Axial Disc Spring Unit
Item #: 09730268
Brand: Kennametal
Model #: 1021701
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Spring Pack |
| Series Code | NACA-DS Axial Disc Spring Unit |
| Connection Size | KM40 |
| Cutting Direction | Neutral |
| Shank Diameter (mm) | 62.00 |
| Shank Diameter (Decimal Inch) | 2.4410 |
| Through Coolant | Yes |
| Head Height (mm) | 100.08 |
| Head Height (Decimal Inch) | 3.9400 |
| Overall Length (mm) | 149.96 |
| Overall Length (Decimal Inch) | 5.9040 |
| Head Length (Decimal Inch) | 2.2040 |
| Head Length (mm) | 55.98 |
| Shank Length (mm) | 93.98 |
| Shank Length (Decimal Inch) | 3.7000 |
