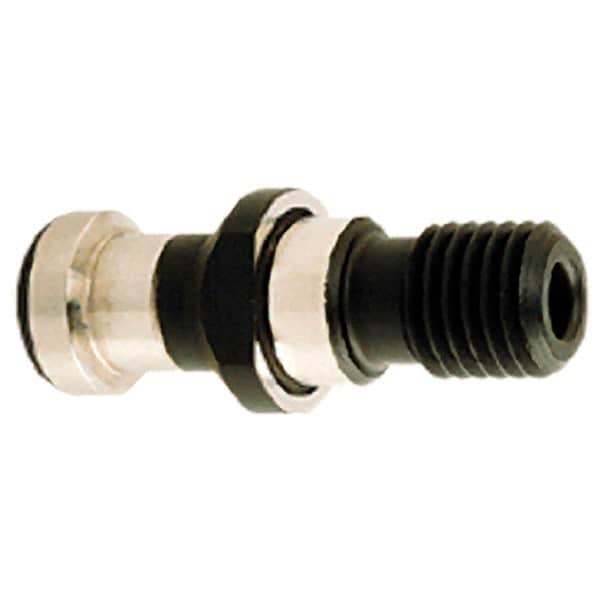

Iscar - CAT40 Taper, M16x2 Thread, 45° Angle Radius, Standard Retention Knob - 2-1/4" OAL, 0.606" Knob Diam, 1.274" from Knob to Flange
Item #: 09699661
Brand: Iscar
Model #: 4503108
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | CAT40 |
| Thread Size | M16x2 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 0.6060 |
| Through Coolant | No |
| Neck Diameter (Decimal Inch) | 0.3940 |
| Overall Length (Decimal Inch) | 2.2500 |
| Knob to Flange Length (Decimal Inch) | 1.2740 |
