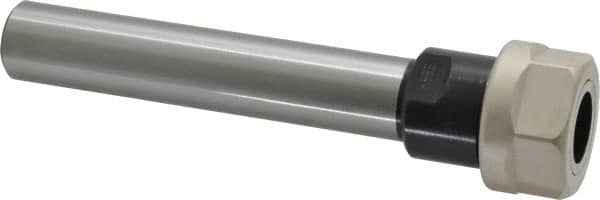

ETM - 0.041" to 0.514" Capacity, 1.656" Projection, Straight Shank, ER20 Collet Chuck - 5.656" OAL, 3/4" Shank Diam
Item #: 09689662
Brand: ETM
Model #: 4501927
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Projection (Decimal Inch) | 1.6560 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.0410 |
| Maximum Collet Capacity (Decimal Inch) | 0.5140 |
| Overall Length (Decimal Inch) | 5.6560 |
| Actuator Type | Wrench |
| Shank Length (Decimal Inch) | 4.0000 |
| Nose Diameter (Decimal Inch) | 1.3390 |
| Hex Diameter (Decimal Inch) | 0.8660 |
| PSC Code | 5136 |
