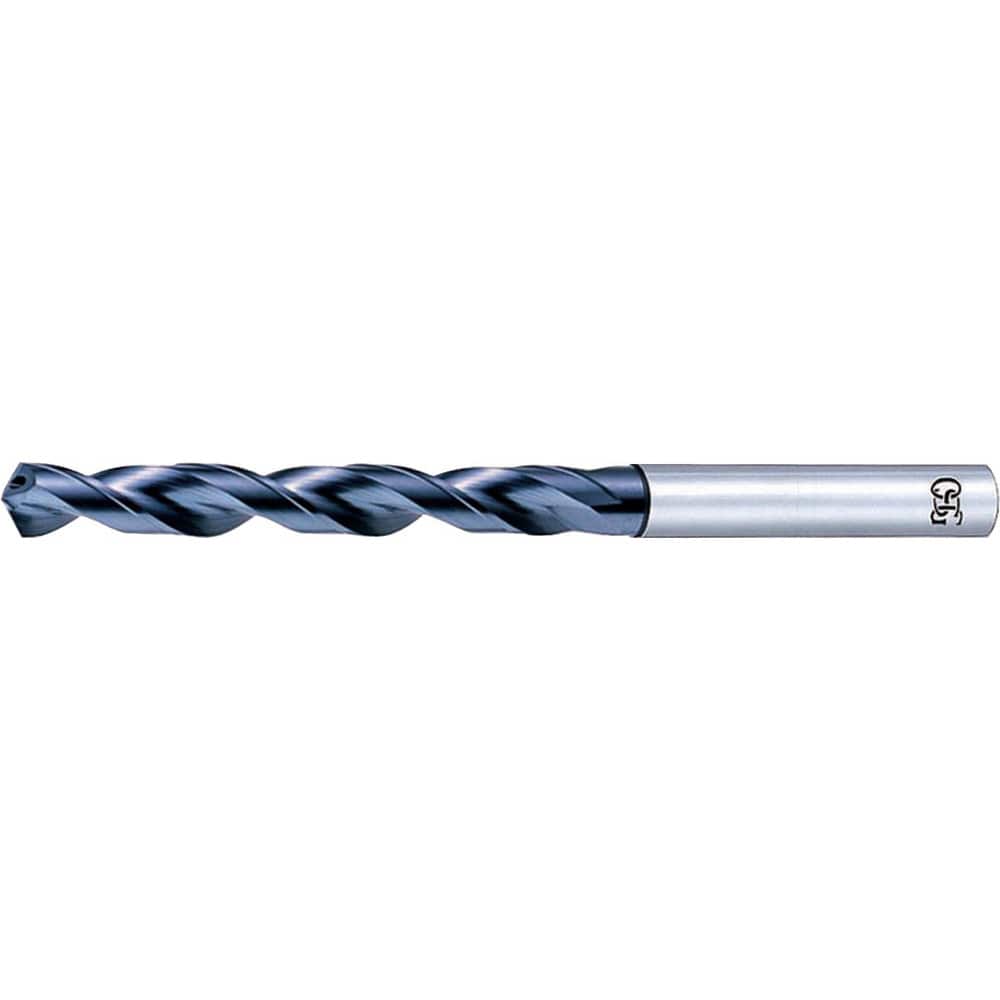

Jobber Length Drill Bit: 0.4688″ Dia, 120 °, Cobalt V Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 1700
Item #: 09595273
Brand: OSG
Model #: 17468808
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4688 |
| Drill Bit Size (Inch) | 15/32 |
| Drill Bit Size (mm) | 11.91 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | V |
| Drill Point Angle (Degrees) | 120 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length (Inch) | 4-5/16 |
| Overall Length (mm) | 162.00 |
| Overall Length (Inch) | 6-13/32 |
| Flute Length (mm) | 109.00 |
| Series | 1700 |
| Tool Application | Drilling; Cross Hole; Blind Hole; Self-Centering |
| Shank Diameter (Inch) | 15/32 |
| Drill Bit Diameter Tolerance | +0 to -0.027 mm |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Tool Performance | High Performance |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
