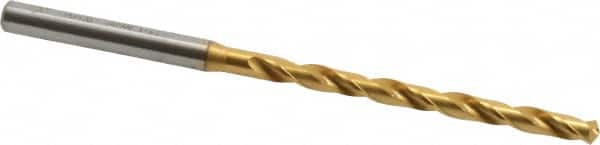

OSG - #24 130° Cobalt Jobber Drill - TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-7/16" OAL, Standard Point
Item #: 09593484
Brand: OSG
Model #: 15152005
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Wire) | #24 |
| Drill Bit Size (Decimal Inch) | 0.1520 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2 |
| Overall Length (Inch) | 3-7/16 |
| Point Type | Standard |
| Shank Diameter (Inch) | 3/16 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Web Thinning | X-Thinned |
| Series/List | 1500 |
